FRONT STABILIZER REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]

id021300800401

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. Inspect the wheel alignment and adjust it if necessary. (See .)

am3zzw00004338

Front Stabilizer Component Removal Note

1. Support the front crossmember component using the jack.

2. Detach the silencer hangers on the middle pipe from the front crossmember.

am3zzw00004468

3. Remove the crossmember bracket.

4. Lower the front crossmember slowly approx. 90 mm {3.5 in} and remove the front stabilizer component.

Front Stabilizer, Stabilizer Bushing, Stabilizer Bracket Installation Note

1. Face the identification mark to the left side of the vehicle.

am5uuw00002100

2. Install the stabilizer bushing to the outer side of the stopper on the stabilizer.

am5uuw00002101

Note

• There are two kinds of stabilizer bushings with different slit positions, and each one can be assembled in either direction.

am5uuw00002102

3. Install the stabilizer bracket so that the arrow on it is facing toward the front of the vehicle.

am5uuw00000142

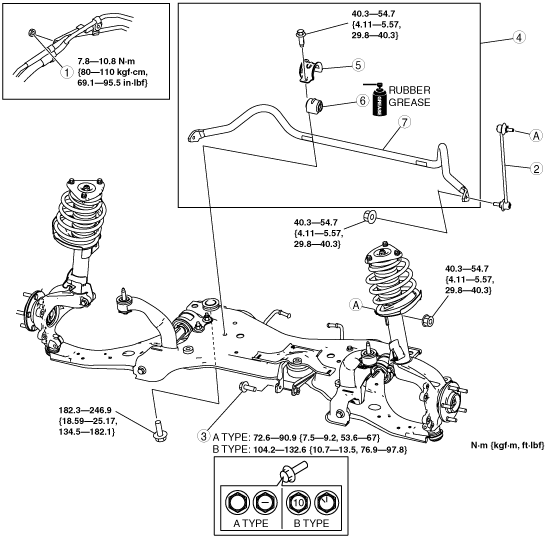

1	Power steering pipe bracket
2	Stabilizer control link
3	No.1 engine mount center bolt
4	Front stabilizer component (See Front Stabilizer Component Removal Note.)
5	Stabilizer bracket (See Front Stabilizer, Stabilizer Bushing, Stabilizer Bracket Installation Note.)
6	Stabilizer bushing (See Front Stabilizer, Stabilizer Bushing, Stabilizer Bracket Installation Note.)
7	Front stabilizer (See Front Stabilizer, Stabilizer Bushing, Stabilizer Bracket Installation Note.)
