STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION

id061400800400

Warning

•  Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and service cautions before handling the air bag module. (See SERVICE CAUTIONS.) (See SERVICE CAUTIONS.)

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  If the steering lock component of a vehicle equipped with the advanced keyless system is replaced, perform the following procedure after installation.

•  Without immobilizer system

―  Steering lock unit programming (See STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS SYSTEM].)

•  With immobilizer system

―  Steering lock unit programming (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [ADVANCED KEYLESS SYSTEM].)

am3zzw00004551

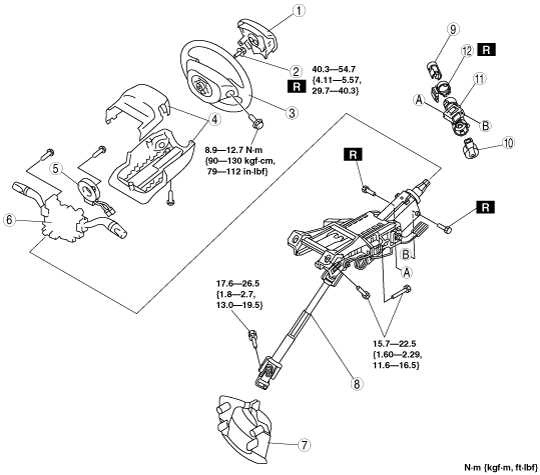

1	Air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
2	Lockbolt
3	Steering wheel (See Steering Wheel Removal Note.) (See Steering Wheel Installation Note.)
4	Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
5	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)
6	Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
7	Dust cover
8	Steering shaft (See Steering Shaft Installation Note.)
9	Outer cylinder (See Outer Cylinder Removal Note.)
10	Ignition switch (See IGNITION SWITCH REMOVAL/INSTALLATION.)
11	Steering lock (See Steering Lock Removal Note.) (See Steering Lock Installation Note.)
12	Coil antenna (See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]) (See COIL ANTENNA REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM])

Steering Wheel Removal Note

Caution

•  Do not try to remove the steering wheel by hitting the shaft with a hammer. The column will be damaged.

1.  Set the wheels in the straight-ahead position.

2.  Remove the steering wheel using any commercially available puller.

Outer Cylinder Removal Note

1.  Insert the key into the key cylinder and turn it to the ACC position.

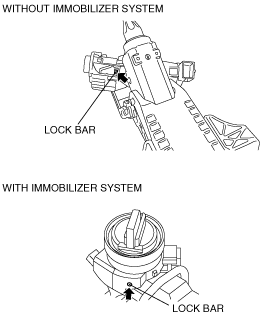

2.  Insert a pin from the position indicated by the arrow in the figure, and while pressing the lock bar with the pin, remove the key cylinder from the steering lock component.

am3zzw00002657

Steering Lock Removal Note

1.  Remove the bolt using a flathead screwdriver, and then remove the steering lock component.

2.  Make a groove in the heads of the steering lock mounting bolts using a chisel and hammer.

am3zzw00002658

3.  Remove the steering lock.

Steering Lock Installation Note

1.  Install the steering lock to the steering shaft.

2.  Verify that the lock operates correctly.

3.  Install new steering lock mounting bolts.

4.  Tighten the bolts until the heads break off.

am3zzw00002659

Steering Shaft Installation Note

1.  Verify that the tilt lever is in the LOCK position.

2.  Tighten the bolts in alphabetical order.

am3zzw00002660

Steering Wheel Installation Note

1.  Set the wheels in the straight-ahead position and install the steering wheel.
