FRONT LOWER ARM REMOVAL/INSTALLATION


id021300800600

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)

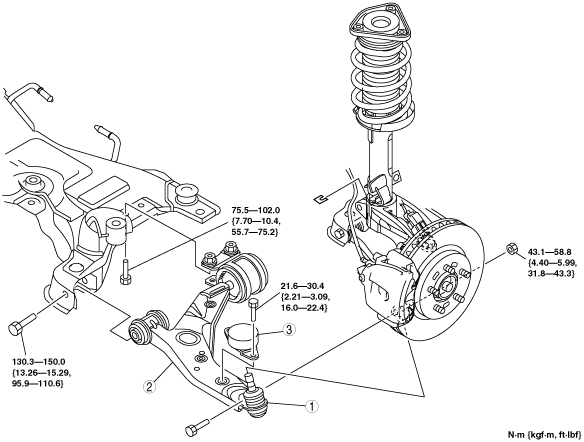

am3zzw00004832

1
Front lower arm ball joint
2
Front lower arm
3
Dynamic damper


Front Lower Arm Removal Note

Note
•  When working on the right side of LF engine vehicles, move the engine and transaxle slightly towards the front side of the vehicle so that the engine does not interfere with the removal of the lower arm front side bolt.

1.  Remove the No.1 engine mount center bolt. (LF engine vehicles)

2.  Move the engine and transaxle slightly towards the front side of the vehicle. (LF engine vehicles)

3.  Remove the front lower arm rear side bolt.

4.  Remove the front lower arm.


Front Lower Arm Installation Note

Caution
•  Install the front lower arm according to the following procedures for optimal installation. Tighten the lower arm installation bolt properly when the vehicle is lifted.
Note
•  Move the engine and transaxle slightly towards the front side of the vehicle install of the lower arm front side bolt.

1.  Temporarily install the front lower arm.

2.  Tighten the No.1 engine mount rubber installation bolt. (LF engine vehicles)

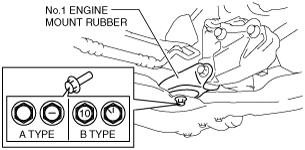

am3uuw00006451

Tightening torque
A type: 72.6—90.9 N·m {7.5—9.2 kgf·m, 53.6—67 ft·lbf}
B type: 104.2—132.6 N·m {10.7—13.5 kgf·m, 76.9—97.8 ft·lbf}

3.  Tighten the front lower arm rear side bolt.

4.  Tighten the front lower arm front side bolt.

5.  Tighten the nut (front lower arm ball joint).
