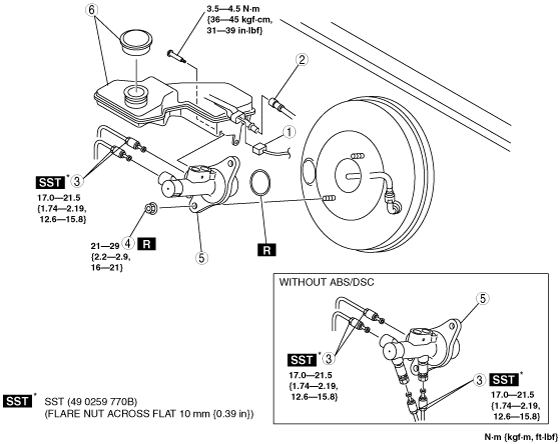

MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D. EXCEPT L3 Turbo]
id041100801349
1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [ZJ, ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION [LF, L3].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
am3zzw00003139
|
|
1
|
Brake fluid level sensor connector
|
|
2
|
Reserve hose (MTX)
|
|
3
|
Brake pipe
|
|
4
|
Nut
|
|
5
|
Master cylinder
|
|
6
|
Reserve tank, cap
|
Reserve Hose (MTX) Removal Note
1. Remove the reserve hose from the reserve tank while pressing the point indicated by the arrow in the figure.
am3zzw00002209
|
Reserve Hose (MTX) Installation Note
1. Insert the reserve hose to the reserve tank until a click is heard.
2. Verify that the reserve hose is firmly installed by pulling it, and push it into the reserve tank again.
