MASTER CYLINDER REMOVAL/INSTALLATION[L.H.D. L3 Turbo]

id041100801351

1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION[L3 Turbo].)

2. Disconnect the vacuum hose from the insulator pipe as shown in the figure.

am3uuw00000389

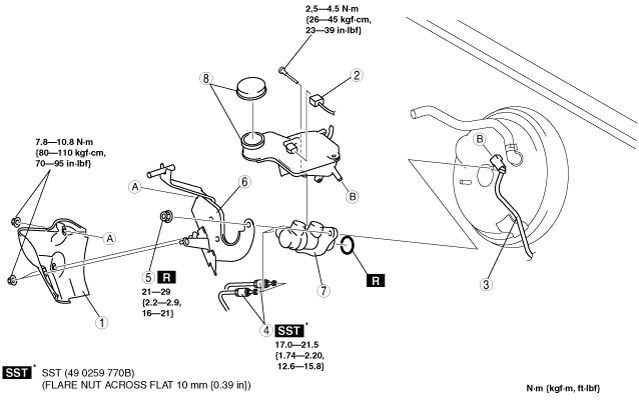

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

am3uuw00000390

Reserve Hose Removal Note

1. Remove the reserve hose from the reserve tank while pressing the point indicated by the arrow in the figure.

am3uuw00000272

Insulator Bracket, Master Cylinder Removal Note

1. Remove the insulator bracket and master cylinder from the power brake unit as a single unit.

2. Remove the insulator bracket from the master cylinder.

Insulator Bracket, Master Cylinder Installation Note

1. Temporarily install the insulator bracket to the master cylinder.

2. Install the insulator bracket and master cylinder to the power brake unit as a single unit.

Reserve Hose Installation Note

1. Insert the reserve hose to the reserve tank until a click is heard.

2. Verify that the reserve hose is firmly installed by pulling it, and push it into the reserve tank again.

1	Insulator
2	Brake fluid level sensor connector
3	Reserve hose (See Reserve Hose Removal Note.) (See Reserve Hose Installation Note.)
4	Brake pipe
5	Nut
6	Insulator bracket (See Insulator Bracket, Master Cylinder Removal Note.) (See Insulator Bracket, Master Cylinder Installation Note.)
7	Master cylinder (See Insulator Bracket, Master Cylinder Removal Note.) (See Insulator Bracket, Master Cylinder Installation Note.)
8	Reserve tank, cap
