VACUUM PUMP REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)]

id0411008036a1

1.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)

2.  Remove the air cleaner and air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)

3.  Remove the fuel filter protector. (See FUEL FILTER REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

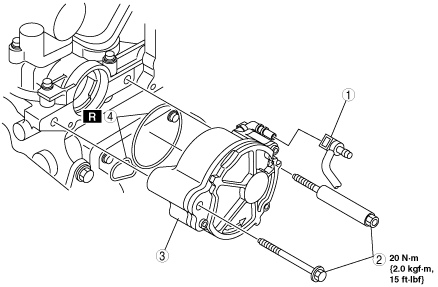

am3zzw00002613

1	Vacuum hose
2	Bolt
3	Vacuum pump
4	O-ring
