FRONT ABS WHEEL-SPEED SENSOR INSPECTION

id041300801300

Sensor Output Value Inspection

Caution

•  Resistance inspection using other testers may cause damage to the ABS wheel-speed sensor internal circuit. Be sure to use the M-MDS to inspect the ABS wheel-speed sensor.

1.  Turn the ignition switch off.

2.  Connect the M-MDS to the DLC-2.

am3zzw00002480

3.  Select the following PIDs using the M-MDS:

•  LF_WSPD

(LF wheel-speed sensor)

•  RF_WSPD

(RF wheel-speed sensor)

4.  Start the engine and drive the vehicle.

5.  Verify that the display of the M-MDS shows the same value as the speedometer.

•  If there is any malfunction, replace the front ABS wheel-speed sensor.

Installation Visual Inspection

1.  Inspect for the following:

•  If there is any malfunction, replace the part.

(1)  Excessive play of the ABS wheel-speed sensor

(2)  Deformation of the ABS wheel-speed sensor

Clearance Inspection

Preparation prior to inspection

1.  Remove the ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)

2.  Remove the wheel hub, steering knuckle component. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION.)

3.  Install the ABS wheel-speed sensor to the removed wheel hub, steering knuckle component, and tighten to the specified torque.

am3zzw00004833

Clearance Inspection

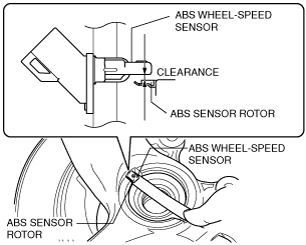

1.  Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.

am3zzw00004834

•  If not within the specification, verify the following items and repair or replace if necessary.

―  Is there deformation or damage to the ABS sensor rotor?

―  Is there deformation or damage to the ABS wheel speed sensor?

―  Is there foreign material adhering?

Servicing after inspection

1.  Remove the ABS wheel-speed sensor from the wheel hub, steering knuckle component.

2.  Install the wheel hub, steering knuckle component. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION.)

3.  Install the ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)

4.  Inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT.)
