TRANSAXLE OIL INSPECTION [F35M-R]

id0515a1800000

Caution
•  There are two types of transaxle oil for this type of transaxle corresponding to the vehicle identification number. If the engine oil is replaced or supplemented, add oil which corresponds to the vehicle identification number and do not use oil of a different type. If a different type of oil is added, it could result in a transaxle malfunction.

1.  Park the vehicle on level ground.

2.  Stop the engine and allow approx. 3 min before continuing.

3.  Remove the vehicle speed sensor (without ABS)/hole cover (with ABS). (See VEHICLE SPEED SENSOR REMOVAL/INSTALLATION (WITHOUT ABS) [F35M-R].)

4.  Verify that the oil level is as shown in the figure.

am3zzw00000608

•  If the oil level is lower than the low level, add the specified amount and type of oil through the vehicle speed sensor (without ABS)/hole cover (with ABS) installation hole.

Item

Type A*1

Type B*2
Manual transaxle oil grade
API service GL-4 or GL-5
API service GL-4
Manual transaxle oil viscosity
All-season: SAE 75W-90
Above 10 °C {50 °F}: SAE 80W-90
SAE 75W-80

*1: Applied VIN (assumed)

*2: Applied VIN (assumed)
JMZ BK12Z2*# 500001—JMZ BK12Z2*# 828290
JMZ BK12Z2*# 828291—
JMZ BK14J2*# 500001—JMZ BK14J2*# 828297
JMZ BK14J2*# 828298—
JMZ BK14Z2*# 500001—JMZ BK14Z2*# 828303
JMZ BK14Z2*# 828304—
JMZ BK12Z20# 500001—JMZ BK12Z20# 828292
JMZ BK12Z20# 828293—
JMZ BK14J20# 500001—JMZ BK14J20# 823130
JMZ BK14J20# 823131—
JMZ BK14Z20# 500001—JMZ BK14Z20# 827540
JMZ BK14Z20# 827541—
JM7 BK226**# 300001—JM7 BK226**# 463764
JM7 BK226**# 463765—
JM7 BK246**# 300001—JM7 BK246**# 464445
JM7 BK246**# 464446—
JM7 BK326**# 300001—JM7 BK326**# 463734
JM7 BK326**# 463735—
JM7 BK346**# 300001—JM7 BK346**# 463737
JM7 BK346**# 463738—
JM7 BK426**# 300001—JM7 BK426**# 426197
JM7 BK426**# 426198—
JM7 BK446**# 300001—JM7 BK446**# 206062
JM7 BK446**# 206063—
JM6 BK1062*0 300001—JM6 BK1062*0 463860
JM6 BK1062*0 463861—
JM6 BK10Y2*0 300001—JM6 BK10Y2*0 464967
JM6 BK10Y2*0 464968—

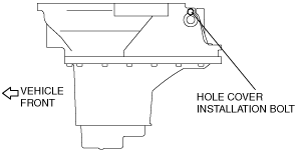

5.  Install the vehicle speed sensor (without ABS)/hole cover (with ABS). (See VEHICLE SPEED SENSOR REMOVAL/INSTALLATION (WITHOUT ABS) [F35M-R].)

am3zzw00000609

Tightening torque
7.8—11 N·m {80—112 kgf·cm, 70—97 ft·lbf}
