PRIMARY CONTROL VALVE BODY INSTALLATION[FS5A-EL]

id051721807400


On‐Vehicle Installation

am3zzw00003591
Caution

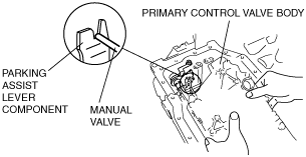

•  Be sure to align the parking rod and the manual valve.

1.  Install the accumulator springs and accumulators into the transaxle case.

am3zzw00003592

Spring

Outer diameter

(mm {in})

Free Length

(mm {in})

No. of coils

Wire diameter

(mm {in})
Servo apply accumulator large spring
21.0
{0.827}
67.8
{2.669}
10.3
3.5
{0.138}
Servo apply accumulator small spring
13.0
{0.512}
67.8
{2.669}
17.1
2.2
{0.087}
Forward accumulator large spring
21.0
{0.827}
75.0
{2.953}
10.7
2.3
{0.091}
Forward accumulator small spring
15.6
{0.614}
49.0
{1.929}
7.7
2.4
{0.094}

2.  Install the primary control valve body component.

am3zzw00003593

Tightening torque
7.8—10.8 N·m
{80—110 kgf·cm, 70—95 in·lbf}
Bolt length (measured from below the head)
B: 40 mm {1.575 in}
No mark: 70 mm {2.756 in}

3.  Install the oil strainer.

4.  Match the harness colors, then connect the solenoid connectors and GND, and install the TFT sensor.

am3zzw00003594

Spring

Color of connector (harness side)
Pressure control solenoid A
Black
Shift solenoid A
White
Shift solenoid B
Blue
Shift solenoid C
Green
Shift solenoid D
White
Shift solenoid E
Black

Tightening torque
7.8—10.8 N·m {80—110 kgf·cm, 70—95 in·lbf}

5.  Apply a light coat of silicon sealant to the contact surfaces of the oil pan and transaxle case.

am3zzw00003595

6.  Install the oil pan.

Tightening torque
6—8 N·m {62—81 kgf·cm, 53—70 in·lbf}

7.  Install the under cover.

8.  Connect the negative battery cable.

9.  Install the battery duct and battery cover. (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

10.  Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT[FS5A-EL].)

11.  Carry out the mechanical system test. (See MECHANICAL SYSTEM TEST[FS5A-EL].)

12.  Carry out the road test. (See ROAD TEST[FS5A-EL].)
