SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION

id051800800800

1. Remove the battery duct. (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION[ZJ, ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

3. Disconnect the negative battery cable.

4. Remove the battery, battery box and battery tray. (See BATTERY REMOVAL/INSTALLATION[ZJ, ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

5. Remove the air cleaner component. (See BATTERY REMOVAL/INSTALLATION[ZJ, ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

6. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

7. Remove the heat insulator. (front and center)

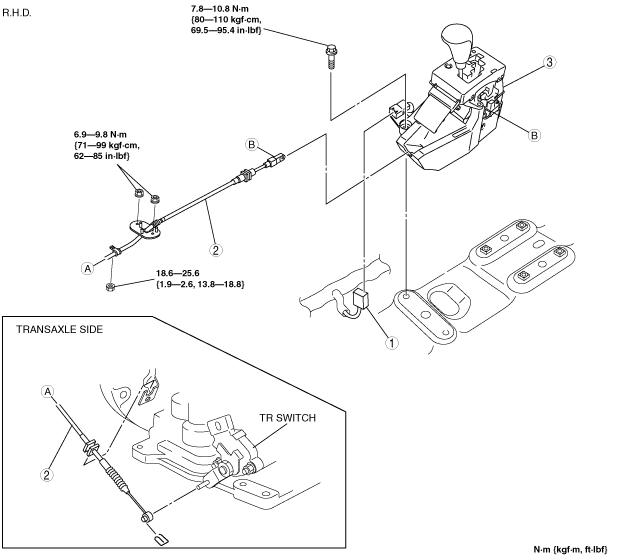

8. Remove in the order indicated in the table.

9. Install in the reverse order of removal.

am3zzw00001163

1

Selector lever component connector

2

Selector cable

(See Selector Cable Removal Note.)

(See Selector Cable Installation Note.)

3

Selector lever component

(See Selector Lever Component Installation Note.)

am3zzw00001164

Selector Cable Removal Note

1. Remove the clip.

2. Remove the selector cable.

am3zzw00001165

Selector Lever Component Installation Note

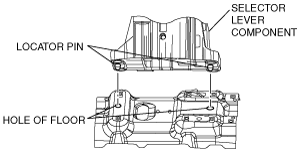

1. Insert the locator pin of selector lever component to the hole of floor.

am3zzw00001166

2. Tighten the selector lever component installation bolts.

Tightening torque

7.8—10.8 N·m

{80—110 kgf·cm, 69.5—95.4 in·lbf}

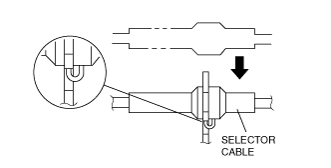

Selector Cable Installation Note

1. Install the selector cable to the selector lever securely.

2. Install the selector cable to the bracket securely.

am3zzw00001167

Note

• Steps 3 and 4 are for the selector cable replacement only.

3. Verify that the selector lever is in the P position.

4. Lock the lock piece and safety lock of the selector cable (selector lever side) in the order as shown in the figure.

am3zzw00001168

am3zzw00001169

5. Verify that the manual shaft is in the P position.

am3zzw00001170

Caution

• Bending the selector cable in the manner shown in the figure will damage the cable and it may become loose when shifted. When installing the selector cable, hold it straight.

6. Install the clip as shown in the figure.

am3zzw00001171

am3zzw00001172

Note

• Install the selector cable to the manual shaft lever with the clip side of the selector cable end facing the front of the vehicle.

7. Install the selector cable to the manual shaft lever in such a way that the selector cable does not bear a load.

8. Confirm that the end of the manual shaft lever sticks out of the end of the selector cable.

9. Install the selector cable to the selector cable bracket securely.

1	Selector lever component connector
2	Selector cable (See Selector Cable Removal Note.) (See Selector Cable Installation Note.)
3	Selector lever component (See Selector Lever Component Installation Note.)
