KEY INTERLOCK SOLENOID INSPECTION

id051800801100

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Disconnect the key interlock solenoid connector.

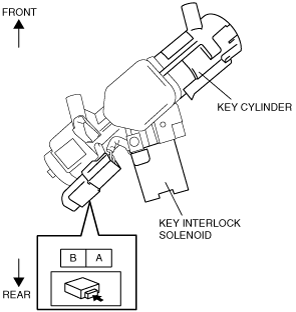

4.  Measure the continuity between terminals A and B.

am3zzw00001158

•  If there is any malfunction, replace the steering lock. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
