REFRIGERANT LINES REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)]
id0711b1801100
1. Disconnect the negative battery cable.
2. Discharge the refrigerant from the system. (See REFRIGERANT CHARGING[MZ-CD 1.6 (Y6)].)
3. Remove the P/S fluid reserve tank.
4. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)].)
5. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)
6. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION.)
7. Remove in the order indicated in the table. Do not allow compressor oil to spill.
8. Install in the reverse order of removal.
9. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)
L.H.D.
am3zzw00000718
|

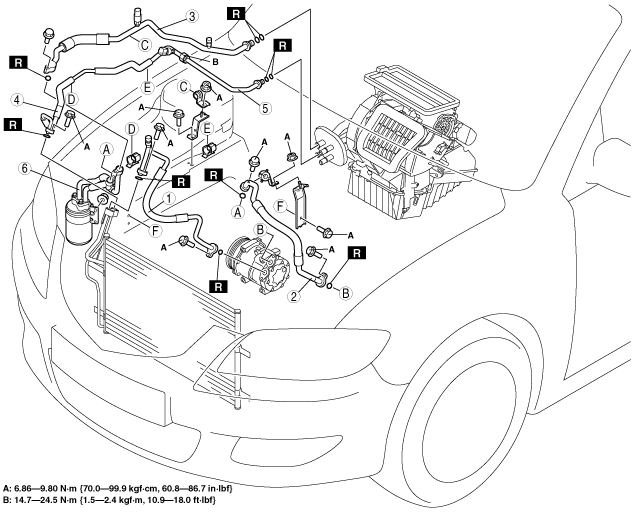

R.H.D.
am3zzw00000719
|
1
|
Cooler hose (HI)
|
2
|
Cooler hose (LO) No.1
|
3
|
Cooler hose (LO) No.2
|
4
|
Cooler pipe No.1
|
5
|
Cooler pipe No.2
|
6
|
Cooler pipe No.3
|
Refrigerant Line Removal Note
Nut joint type
Block joint type
1. Disconnect the block joint type pipes by grasping female side of the block with pliers or similar tool and holding firmly, then remove the connection bolt or nut.
am3zzw00000720
|
Spring-lock coupling type
1. Set the SST.
am3zzw00000721
|
2. While looking through the inspection hole of the SST, insert the protruding part of the SST until it makes contact with the cage section.
am3zzw00000722
|
3. Use the SST to disconnect the male pipe or hose from the female by pulling the male pipe or hose.
am3zzw00000723
|
Refrigerant Line Installation Note
1. Apply compressor oil to the O-rings and connect the joints.
2. Tighten the joints.
Nut or Block joint type
1. Temporarily tighten the nut or bolt at the connection as much as possible by hand.
2. Tighten to the specified torque using a torque wrench. Tighten the nut joint using a double spanner.
am3zzw00000724
|
Spring-lock coupling type

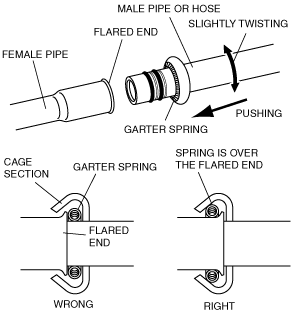

1. Connect the male pipe or hose by twisting it onto female pipe until the garter spring at the male pipe or hose is over the flared end of female pipe.
am3zzw00000725
|
