A/C UNIT DISASSEMBLY/ASSEMBLY[MANUAL AIR CONDITIONER (MZ-CD 1.6 (Y6))]

id0711b3800300

1.  Disassemble in the order indicated in the table.

Caution

•  If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

2.  Assemble in the reverse order of disassembly.

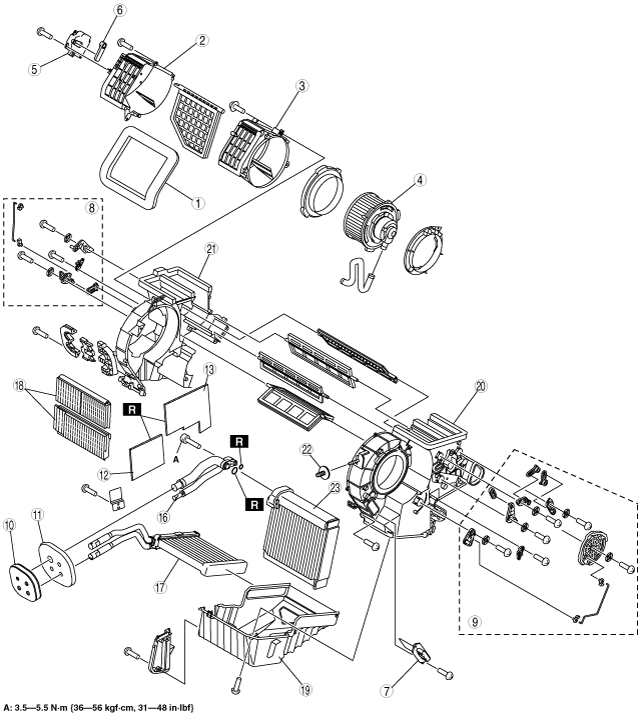

L.H.D.

am3zzw00000703

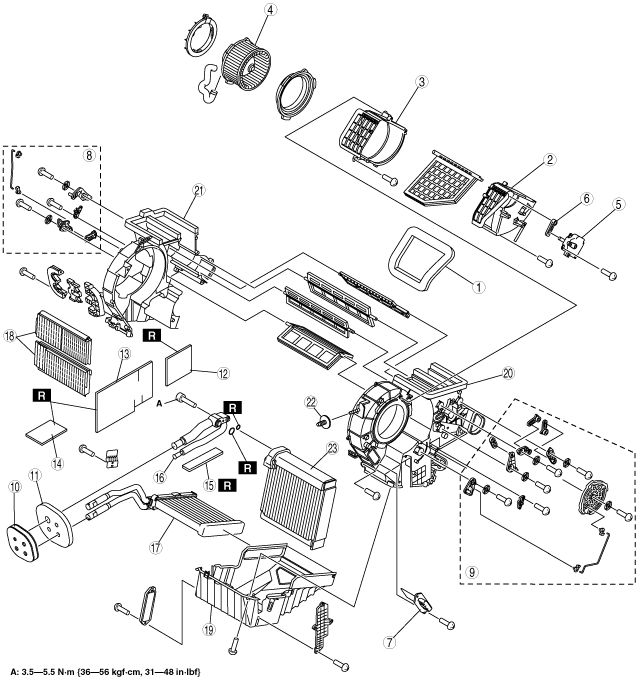

R.H.D.

am3zzw00000704

1	Adhesive polyurethane (1)
2	Blower case (1)
3	Blower case (2)
4	Blower motor
5	Air intake actuator
6	Air intake link set
7	Resistor
8	Air mix link set
9	Airflow mode link set
10	Polyurethane foam (1)
11	Polyurethane foam (2)
12	Adhesive polyurethane (2) (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
13	Adhesive polyurethane (3) (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
14	Adhesive polyurethane (4) (R.H.D.) (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
15	Adhesive polyurethane (5) (R.H.D.) (See A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))].)
16	Evaporator pipe
17	Heater core
18	Air filter
19	A/C case (3)
20	A/C case (1)
21	A/C case (2)
22	Bolt
23	Evaporator
