MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[L3 Turbo]

id0740008004c3

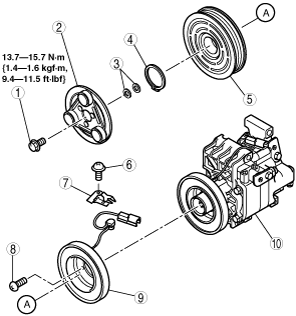

1.  Disassemble in the order indicated in the table.

am3zzw00003310

1	Bolt (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[ZJ, ZY, Z6].)
2	Pressure plate
3	Shim
4	Snap ring (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[ZJ, ZY, Z6].)
5	A/C compressor pulley
6	Screw (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[ZJ, ZY, Z6].)
7	Clamp (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[ZJ, ZY, Z6].)
8	Screw
9	Stator and thermal protector (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY[ZJ, ZY, Z6].)
10	A/C compressor body

2.  assemble in the reverse order of disassembly.

3.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)
