DTC B2212[PJB]
id090208835200
DTC B2212 |
Panel light control circuit failure |
---|---|
DETECTION CONDITION
|
Input voltage from the panel light control switch is excessively low or high
|
POSSIBLE CAUSE
|

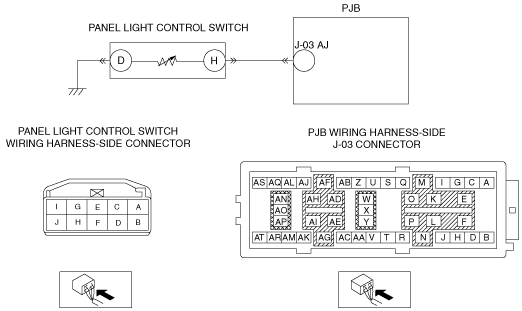

• Open circuit in wiring harness between PJB terminal J-03 AJ and panel light control switch terminal H
• Short to power supply in wiring harness between PJB terminal J-03 AJ and panel light control switch terminal H
• Short to GND in wiring harness between PJB terminal J-03 AJ and panel light control switch terminal H
• Panel light control switch malfunction
• PJB malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
INSPECT PANEL LIGHT CONTROL SWITCH CONNECTOR
• Turn the ignition switch off.
• Disconnect the panel light control switch connector.
• Inspect the panel light control switch connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 7.
|
No
|
Go to the next step.
|
||
2
|
INSPECT PJB CONNECTOR
• Disconnect the PJB connector.
• Inspect the PJB connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 7.
|
No
|
Go to the next step.
|
||
3
|
INSPECT PANEL LIGHT CONTROL SWITCH CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between PJB terminal J-03 AJ (wiring harness-side) and panel light control switch terminal H (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 7.
|
||
4
|
INSPECT PANEL LIGHT CONTROL SWITCH CIRCUIT FOR SHORT TO GND
• Inspect for continuity between PJB terminal J-03 AJ (wiring harness-side) and body GND.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to GND, then go to Step 7.
|
No
|
Go to the next step.
|
||
5
|
INSPECT PANEL LIGHT CONTROL SWITCH CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between PJB terminal J-03 AJ (wiring harness-side) and body GND.
• Is the voltage B+?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.
|
No
|
Go to the next step.
|
||
6
|
INSPECT PANEL LIGHT CONTROL SWITCH
• Inspect the panel light control switch.
• Is there any malfunction?
|
Yes
|
Replace the panel light control switch, then go to the next step.
|
No
|
Go to the next step.
|
||
7
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PJB memory using the M-MDS.
• Perform the self-test.
(See PJB SELF-TEST[PJB].)
• Is the same DTC present?
|
Yes
|
Replace the PJB.
|
No
|
DTC troubleshooting completed.
|
