DTC B2968[PJB]
id090208836300
|
DTC B2968 |
Battery back sounder circuit short to ground |
|---|---|
|
DETECTION CONDITION
|
Short to GND in wiring harness between PJB and theft-deterrent siren
|
|
POSSIBLE CAUSE
|

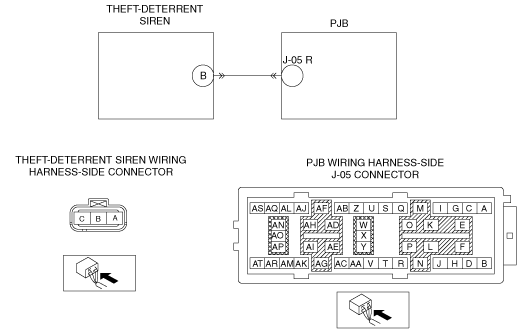

• Short to GND in wiring harness between PJB terminal J-05 R and theft-deterrent siren terminal B
• Theft-deterrent siren malfunction
• PJB malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT THEFT-DETERRENT SIREN CONNECTOR
• Disconnect the theft-deterrent siren connector.
• Inspect the theft-deterrent siren connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 4.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT PJB CONNECTOR
• Disconnect the PJB connector.
• Inspect the PJB connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 4.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT THEFT-DETERRENT SIREN SIGNAL CIRCUIT FOR SHORT TO GND
• Inspect for continuity between PJB terminal J-05 R (wiring harness-side) and body GND.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to GND, then go to the next step.
|
|
No
|
Replace the theft-deterrent siren, then go to the next step.
|
||
|
4
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PJB memory using the M-MDS.
• Turn the ignition switch to off then ON.
• Is the same DTC present?
|
Yes
|
Replace the PJB.
|
|
No
|
DTC troubleshooting completed.
|
||
