FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800600

1.  Remove the front bumper. (SeeFRONT BUMPER REMOVAL/INSTALLATION.)

2.  Remove the front combination light. (SeeFRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the horn. (SeeHORN REMOVAL/INSTALLATION.)

4.  Set the following parts out of the way

(1)  Under cover

(2)  Charge air cooler duct (MZR-CD (RF Turbo)) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

(3)  Electric power steering oil pump (LF)

(4)  Washer tank

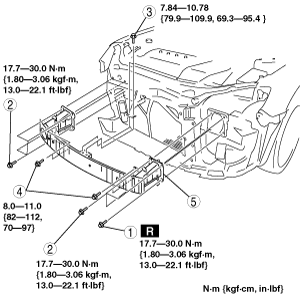

5.  Remove the order indicated in the table.

Caution

•  If bolt A (only one location on the lower left) is removed, always replace it with the specialized replacement part (Part No. BPYK 50 0Z2) to ensure proper horn ground connection.

am3zzw00002218

1	Bolt A
2	Bolt B
3	Bolt C
4	Bolt D
5	Front bumper reinforcement (SeeFront Bumper Reinforcement Installation Note.)

6.  Install in the reverse order of removal.

7.  After installation, verify that the horn functions normally.

Front Bumper Reinforcement Installation Note

Reusing the front bumper reinforcement

Caution

•  In order to ensure proper body ground connection, do not apply paint in the area where the bolt A flange contacts the front bumper reinforcement.

am3zzw00002219

Installing a new front bumper reinforcement

1.  Remove the masking tape from the front bumper reinforcement.

•  If the masking tape has already peeled off, scrape off any rust or paint residue from the masked area.

am3zzw00002220

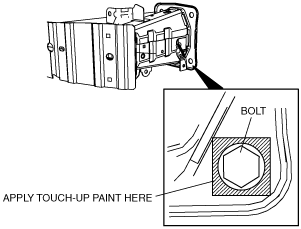

2.  After installing bolt A, apply touch-up paint to the area of the front bumper reinforcement that has remained unpainted.

am3zzw00002221
