C-PILLAR TRIM REMOVAL/INSTALLATION


id091700802200


4SD

1.  Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

4.  Partially peel back the seaming welt.

5.  Remove the fastener.

am3zzw00002151

6.  Detach clips A, locator pin B and C, using a fastener remover.

7.  Detach the tab from the body and remove the C-pillar trim.

8.  Install in the reverse order of removal.


5HB

1.  Remove the following parts:

(1)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)
(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(4)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welt.

3.  Remove the fasteners.

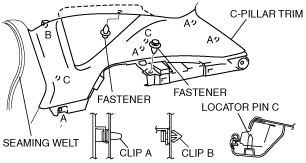

am3zzw00002152

4.  Detach clips A, B and locator pins C, using a fastener remover.

5.  Remove the C-pillar trim.

6.  Install in the reverse order of removal.
