HEADLIGHT BULB REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]

id091800800554

Low-beam

Halogen type

1. Disconnect the negative battery cable.

2. Disconnect the connector.

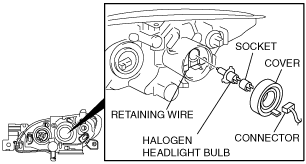

am3zzw00003653

Caution

• A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

3. Remove the cover.

4. Remove the socket, then remove the headlight bulb.

5. Install in the reverse order of removal.

Discharge type

Warning

• Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS.)

1. Disconnect the negative battery cable.

2. Remove the front bumper. (SeeFRONT BUMPER REMOVAL/INSTALLATION.)

3. Remove the front combination light. (SeeFRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

4. Remove the cover.

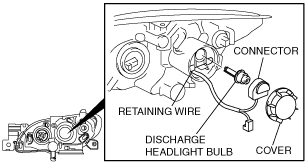

am3zzw00003654

Caution

• The bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

5. Remove the connector, then remove the discharge headlight bulb.

6. Install in the reverse order of removal.

High-beam

1. Disconnect the negative battery cable.

2. To remove the higt-beam bulb (LH), perform the following procedure:

(1) Remove the strap.

am3zzw00004234

(2) Slightly bend back the air cleaner.

am3zzw00004455

3. Disconnect the connector.

am3zzw00003655

Caution

4. Remove the socket, then remove the headlight bulb.

5. Install in the reverse order of removal.
