HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION
id091800802000
4SD
1. Disconnect the negative battery cable.
2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

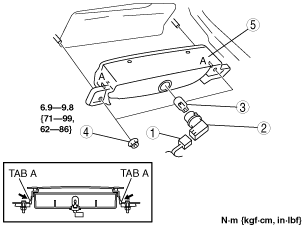

3. Remove in the order indicated in the table.
am3zzw00001841
|
|
1
|
Connector
|
|
2
|
Socket
|
|
3
|
High-mount brake light bulb
|
|
4
|
Nut
|
|
5
|
High-mount brake light
|
4. Install in the reverse order of removal.
5HB
In-vehicle type
1. Disconnect the negative battery cable.
2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
am3zzw00001842
|
|
1
|
Connector
|
|
2
|
Socket
|
|
3
|
High-mount brake light bulb
|
|
4
|
High-mount brake light
|
4. Install in the reverse order of removal.
Built-into rear spoiler type
1. Disconnect the negative battery cable.
2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
3. Remove the rear spoiler. (See REAR SPOILER REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
am3zzw00001925
|
|
1
|
Screw
|
|
2
|
Cover
|
|
3
|
High-mount brake light
|
|
4
|
Connector
|
5. Install in the reverse order of removal.
