WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

id091900802100

1.  Remove the bonnet insulator. (See BONNET REMOVAL/INSTALLATION.)

2.  Slightly bend back the mudguard (RH).

3.  Disconnect joint pipe A.

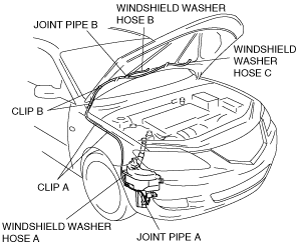

am3zzw00001858

4.  Remove windshield washer hose A from clips A.

5.  Remove clips B.

6.  Disconnect windshield washer hose B from the washer nozzle.
