BONNET REMOVAL/INSTALLATION

id091000802500

Warning

•  Removing the bonnet without proper support can be dangerous. The bonnet may fall and injure you. Always perform the following procedure with at least another person.

1.  To remove the bonnet hinge, remove the following parts:

(1)  Front side turn lights (SeeFRONT SIDE TURN LIGHT REMOVAL/INSTALLATION.)

(2)  Front bumper (SeeFRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination lights (SeeFRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Front fender panel (SeeFRONT FENDER PANEL REMOVAL/INSTALLATION.)

(5)  Charge air cooler duct (Mazda3 MPS) (SeeINTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 Turbo].)

2.  Disconnect the windshield washer hose.

3.  Remove in the order indicated in the table.

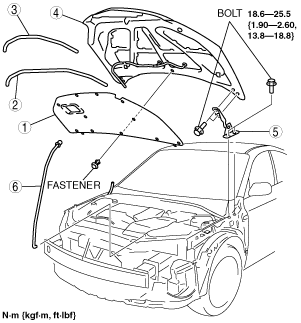

am3zzw00002238

1	Bonnet insulator
2	Shroud seal weatherstrip
3	Parting seal weatherstrip (4SD) (Mazda3 MPS)
4	Bonnet
5	Bonnet hinge
6	Bonnet stay

4.  Install in the reverse order of removal.

5.  Adjust the bonnet. (SeeBONNET ADJUSTMENT.)
