AUDIO CONTROL SWITCH REMOVAL/INSTALLATION

id092000800200

1.  Disconnect the negative battery cable.

2.  Remove the driver-side air bag module.(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Remove the steering wheel.(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

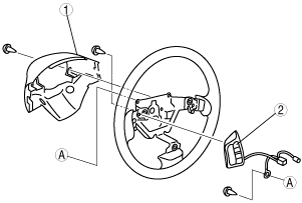

4.  Remove in the order indicated in the table.

am3zzw00001463

1	Cover
2	Audio control switch (See Audio Control Switch Installation Note.)

5.  Install in the reverse order of removal.

Audio Control Switch Installation Note

1.  Install the audio control switch so that the audio control switch wiring harness passes behind the steering wheel as shown in the figure.

am3zzw00001464
