FUEL GAUGE SENDER UNIT INSPECTION [LF, L3]

id0922000121d5

1.  Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT INSPECTION [LF, L3].)

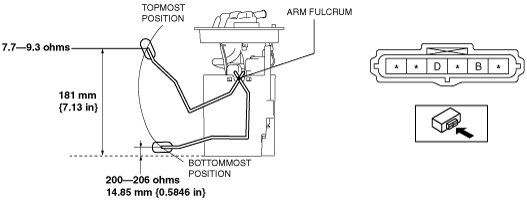

2.  Verify that the resistance between terminals B and D of the fuel gauge sender unit based on the height of the float as shown in the figure.

am3zzw00012448

•  If they are not as shown in the figure, replace the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT INSPECTION [LF, L3].)
