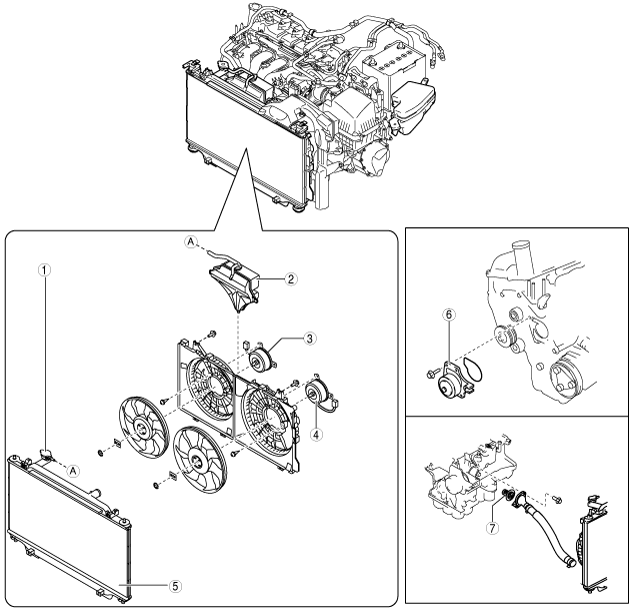

COOLING SYSTEM LOCATION INDEX [MZR 1.6]

id0112s3800100

am3zzw00014045

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [MZR 1.6].)
2	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [MZR 1.6].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZR 1.6].)
3	Cooling fan motor No.2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR 1.6].) (See COOLING FAN MOTOR INSPECTION [MZR 1.6].)
4	Cooling fan motor No.1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR 1.6].) (See COOLING FAN MOTOR INSPECTION [MZR 1.6].)
5	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [MZR 1.6].) (See ENGINE COOLANT REPLACEMENT [MZR 1.6].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 1.6].) (See RADIATOR REMOVAL/INSTALLATION [MZR 1.6].)
6	Water pump (See WATER PUMP REMOVAL/INSTALLATION [MZR 1.6].)
7	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [MZR 1.6].) (See THERMOSTAT INSPECTION [MZR 1.6].)
