FUEL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0114zc002600


Purpose, Outline

•  A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.
•  Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.

Structural View

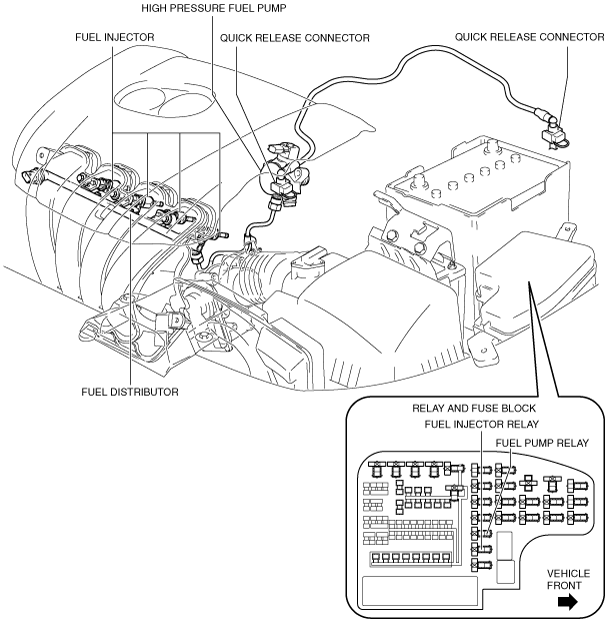

Engine compartment side

am3uun00003161

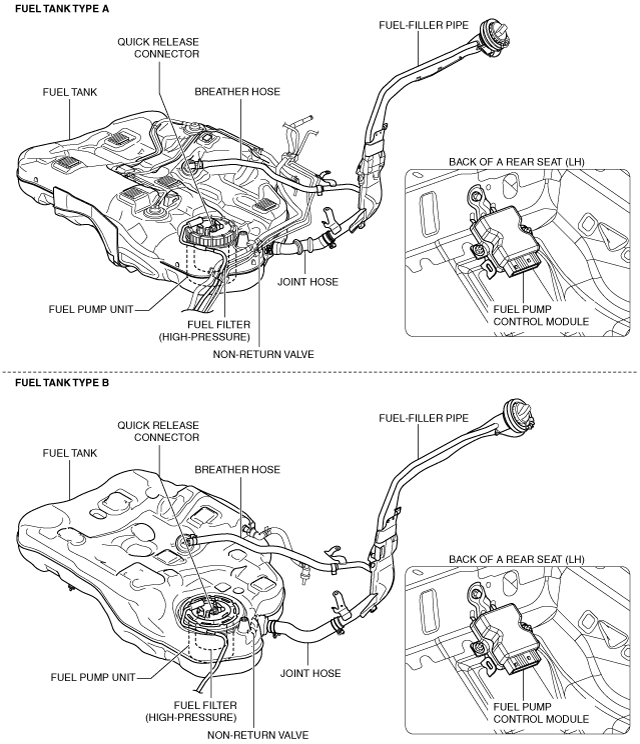

Fuel tank side

am3zzn00004866

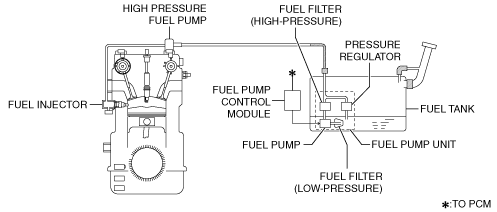

System Diagram

am3uun00003164

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Returnless fuel system
(See RETURNLESS FUEL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel pump unit
(See FUEL PUMP UNIT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel tank
(See FUEL TANK [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel pump relay
(See FUEL PUMP RELAY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel injector relay
(See FUEL INJECTOR RELAY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Quick release connector (fuel system)
(See QUICK RELEASE CONNECTOR (FUEL SYSTEM) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 430 {4.38, 62.4}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
51.0 {13.5, 11.2}


Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel (Conforming to EN 228 and within E10)*1
95 or above
Guatemala, Bolivia, Uruguay, Honduras, Nicaragua, Aruba, New Caledonia, Turkey, Israel, Azerbaijan, Armenia, Georgia, Canary Islands, Reunion, Morocco, Austria, Greece, Italy, Switzerland, Belgium, Denmark, Finland, Norway, Portugal, Spain, Sweden, Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia, Luxembourg, Slovakia, Latvia, Lithuania, Russia, Belarus, France, Ukraine, Czech, Estonia, Faeroe, Iceland, Romania, The Netherlands, Macedonia, Bosnia and Herzegovina, Serbia, Montenegro, Albania, Moldova, Martinique, F.Guiana, Guadeloupe, Cyprus, Malta, Ireland, UK, Tahiti, Vanuatu, UAE, Lebanon, Algeria, Libya, Tunisia, Madagascar, Singapore, Hong Kong, Macau, Brunei, Mauritius, South Africa, Jamaica, Barbados, Grenada, ST. Lucia, ST. Vincent, Antigua, Surinam, Malaysia, Kazakhstan, Taiwan
Premium unleaded fuel (within E85)
Thailand
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)*2

90 or above
Australia, New Zealand, Chile, El Salvador, Costa Rica, Ecuador, Haiti, Colombia, Dominican Republic (LHD), Panama, Peru, B. Virgin, Curacao, St. Martin, The Philippines, Marshall Islands, Ustt*3, Kuwait, Oman, Qatar, Saudi Arabia, Syria, Bahrain, Jordan, Ivory Coast, Nigeria, Angola, Nepal, Sri Lanka, Fiji, Kenya, Zimbabwe, Trinidad and Tobago, Commonwealth of Dominica, Vietnam, Cambodia, Laos, Iraq
92 or above
Myanmar

*1  :Europe
*2  :Australia
*3  :Republic of Palau & Federated States of Micronesia
