CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2]

id0117h6308400

Purpose, Function

• Warns the driver of a charging system malfunction.

― For details on DTCs which illuminate the charging system warning light, refer to ON-BOARD DIAGNOSTIC SYSTEM. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [PCM (SKYACTIV-D 2.2)].)

Construction

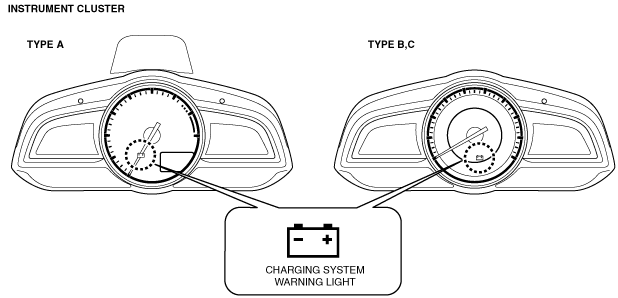

• The charging system warning light is built into the instrument cluster. (See INSTRUMENT CLUSTER.)

am3zzn00006101

Operation

• Illuminates when a malfunction occurs in the charging system and a DTC is stored in the PCM.

• For vehicles with center display, a warning message in the center display is displayed when the charging system warning light is turned on. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

• For instrument cluster type B, a warning message in the multi-information display is displayed simultaneously when the charging system warning light is illuminated. For the message content, refer to the MULTI-INFORMATION DISPLAY. (See MULTI-INFORMATION DISPLAY.)
