MULTI-INFORMATION DISPLAY

id092200073900

Outline

Function/Construction

Information displayed in multi-information display

•  The information displayed by the multi-information display is as follows: Refer to the referenced section for details of the displayed information.

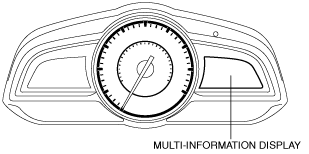

am3zzn00003994

Display information	Reference
Instantaneous fuel economy, average fuel economy, remaining distance to empty, average vehicle speed	(See TRIP COMPUTER INFORMATION SYSTEM.)
Message screen, warning screen, and system operation screen	(See Message screen, warning screen, and system operation screen.)
Fuel gauge	(See FUEL GAUGE.)

Message screen, warning screen, and system operation screen

•  The instrument cluster displays the following screens in the multi-information display.

•  If the instrument cluster receives message display requests from multiple units, the screens are switched at certain intervals.

Screen display	Master warning light	Related unit	Reference/function
	—	PCM	(See CHECK ENGINE LIGHT [MZR 1.6].) (See CHECK ENGINE LIGHT [PCM (SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See CHECK ENGINE LIGHT [PCM (SKYACTIV-D 1.5)].) (See CHECK ENGINE LIGHT [PCM (SKYACTIV-D 2.2)].)
	—	PCM	(See ENGINE OIL WARNING LIGHT [MZR 1.6].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 1.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
	—	Instrument cluster	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
	—
	On	PCM (Global central configuration error or active air shutter system malfunction)	(See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [MZR 1.6].) (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [PCM (SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [PCM (SKYACTIV-D 1.5)].) (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [PCM (SKYACTIV-D 2.2)].) (See ACTIVE AIR SHUTTER CONTROL.)
	—	PCM	(See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 1.5].) (See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
	—
	—	PCM	(See WRENCH INDICATOR LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See WRENCH INDICATOR LIGHT [SKYACTIV-D 1.5].) (See WRENCH WARNING INDICATOR LIGHT [SKYACTIV-D 2.2].)
	On	PCM (Brake switch malfunction)	(See DRIVE-BY-WIRE CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See DRIVE-BY-WIRE CONTROL OPERATION [MZR 1.6].) (See FUEL INJECTION AMOUNT CONTROL [SKYACTIV-D 1.5].) (See FUEL INJECTION AMOUNT CONTROL [SKYACTIV-D 2.2].)
	—	PCM	(See CHARGING SYSTEM WARNING LIGHT FUNCTION [MZR 1.6].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
	On	PCM	(See GENERATOR CONTROL OPERATION [MZR 1.6].) (See GENERATOR CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GENERATOR CONTROL [SKYACTIV-D 1.5].) (See GENERATOR CONTROL [SKYACTIV-D 2.2].)
	On	PCM (i-ELOOP)	(See i-ELOOP [i-ELOOP].)
	—
	—	PCM (i-stop)	(See i-stop CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop CONTROL [SKYACTIV-D 1.5].) (See i-stop CONTROL [SKYACTIV-D 2.2].)
	—	PCM (Cruise control system)	(See CRUISE CONTROL SYSTEM [MZR 1.6].) (See CRUISE CONTROL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CRUISE CONTROL SYSTEM [SKYACTIV-D 1.5].) (See CRUISE CONTROL SYSTEM [SKYACTIV-D 2.2].)
	—	PCM (Adjustable speed limiter)	(See ADJUSTABLE SPEED LIMITER.)
	—
	—	EPS CM	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
	—	DSC HU/CM	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
	—
	—		(See TCS/DSC INDICATOR LIGHT.)
	—	Front body control module (FBCM)	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
	—	Electric parking brake control module	(See ELECTRIC PARKING BRAKE.)
	—	Instrument cluster (Parking brake warning)	(See PARKING BRAKE WARNING DISPLAY.)
	—	DSC HU/CM (TPMS)	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
	—
	—
	—	Forward sensing camera (FSC) (SCBS)	(See ADVANCED SMART CITY BRAKE SUPPORT (ADVANCED SCBS).) (See SMART CITY BRAKE SUPPORT [FORWARD] (SCBS F).) (See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)
	—
	—
	—
	—
	—
	—	TCM	(See AUTOMATIC TRANSAXLE WARNING LIGHT CONSTRUCTION/OPERATION [FN4A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL].)
	—	Start stop unit (Advanced keyless entry system)	(See ADVANCED KEYLESS ENTRY SYSTEM.)
	—
	—
	—
	—	Start stop unit (Push button start system)	(See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].)
	—
	—
	—
	—
	—	Forward sensing camera (FSC) (Lane Departure Warning System (LDWS))	(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
	—
	—	Front body control module (FBCM)	(See FRONT BODY CONTROL MODULE (FBCM).)
	—
	—	Front body control module (FBCM) (washer fluid level warning system)	(See WASHER FLUID LEVEL WARNING SYSTEM.)
	—	Instrument cluster	(See LIGHTS-ON REMINDER WARNING ALARM.)
	—	Instrument cluster	(See AMBIENT TEMPERATURE DISPLAY.)
	—	Instrument cluster	(See FUEL TANK LEVEL WARNING DISPLAY.)
	—	Instrument cluster	(See DOOR AJAR WARNING DISPLAY.)

Switching of display content in multi-information display

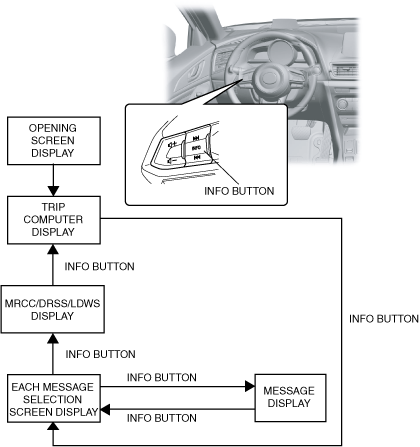

•  The instrument cluster switches the display content of the multi-information display as follows based on the steering switch operation signal from the start stop unit.

am3zzn00006484

Data reset of display content in multi-information display

Caution

•  Previously stored data cannot be recovered after it is reset. When resetting data, explain the reset items to the customer and reset the data after obtaining their consensus.

•  The following information displayed on the multi-information display can be reset all at once. Refer to the Workshop Manual for the detailed resetting procedure.

Trip computer-related information

―  Average fuel economy

―  Average vehicle speed

―  TRIP value
