CHARGING SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)]

id0117i61029i8

Note

• For details on the generator, DC-DC converter (i-ELOOP) and the capacitor, refer to the i-ELOOP section. (See i-ELOOP [i-ELOOP].)

Outline

• Regulator-less generator (built-in power transistor) has been adopted.

• A generator using two delta connection type stator coils has been adopted.

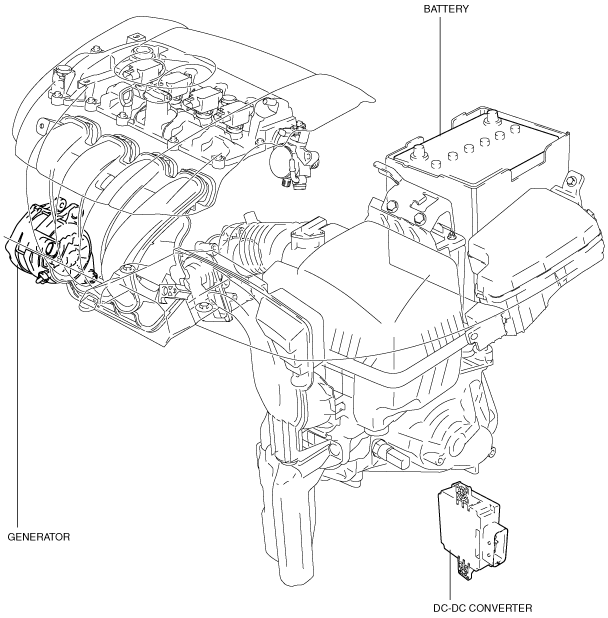

Structural View

am6zzn00002436

Structure

• Consists of the following parts:

Battery	(See BATTERY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Generator (without i-ELOOP)	(See GENERATOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].)
DC-DC converter (Vehicle with i-stop and without i-ELOOP)	(See DC-DC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].)
Charging system warning light	(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
