DC-DC CONVERTER [SKYACTIV-D 1.5]

id0117q6004500

Purpose, Function

• When the engine is restarted by the i-stop control, the battery voltage temporarily decreases to operate the starter. Pressure is increased to maintain the voltage for vehicle electrical devices at that time.

Construction

• The DC-DC converter is located on the vehicle's left front part (lower part of front combination light).

am3zzn00006098

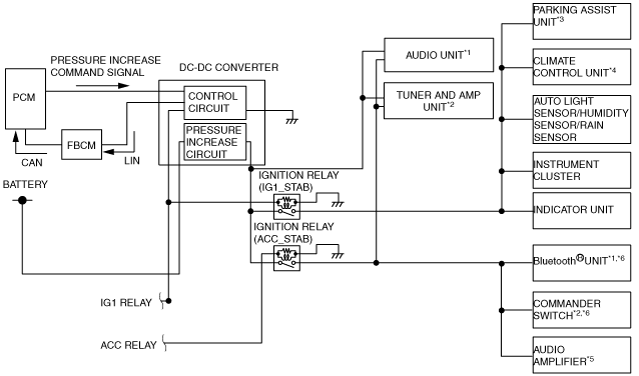

Operation

• The battery voltage increases based on the control signal from the PCM.

am3zzn00006099

*1 :Without center display

*2 :With center display

*3 :With parking sensor system

*4 :With full-auto A/C (dual type)

*5 :With Bose® type audio

*6 :With Bluetooth® system

• For details of the DC-DC converter control, refer to CONTROL SYSTEM. (See DC-DC CONVERTER CONTROL [SKYACTIV-D 1.5].)

Fail-safe

• Not applicable
