DC-DC CONVERTER CONTROL [SKYACTIV-D 1.5]

id0140z5004300

Outline

• Stability of the power supply to the cabin has been realized by preventing decreases in the power supply due to battery voltage decreases while the engine is restarted by the i-stop control.

• When the engine is restarted by the i-stop control, the PCM sends a battery voltage (DC-DC converter downstream voltage) boost request signal to the DC-DC converter.

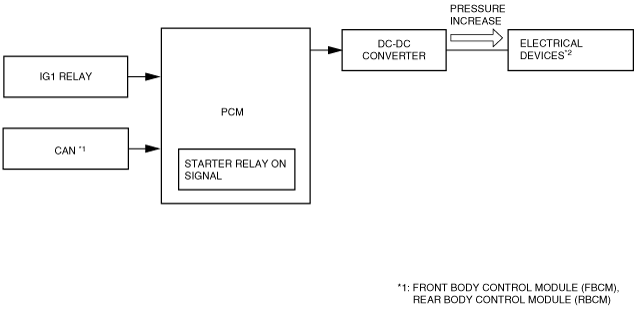

Block Diagram

am3zzn00006143

*2 :For details on the vehicle's electrical devices, refer to the CHARGING SYSTEM. (See DC-DC CONVERTER [SKYACTIV-D 1.5].)

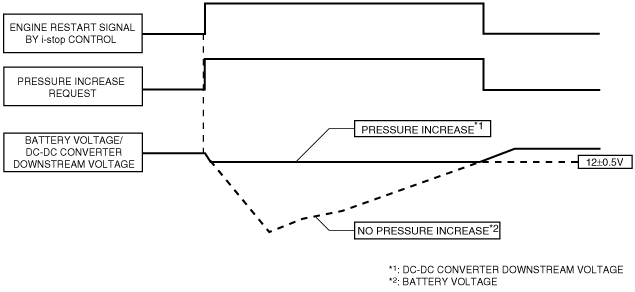

Operation

• When the engine is restarted by the i-stop control, the PCM sends a voltage boost request signal to the DC-DC converter so that the DC-DC converter downstream voltage is maintained at 11.5―12.5 V.

ac3wzn00000753
