CHARGING SYSTEM [SKYACTIV-D 1.5]

id0117q6102900

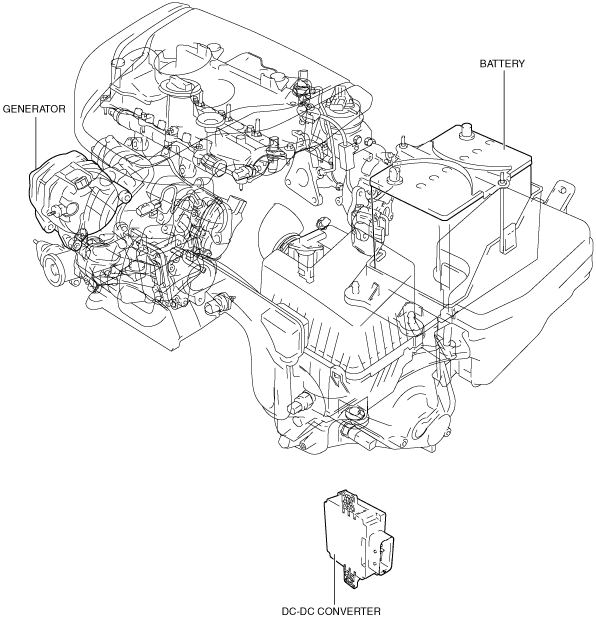

Structural View

am3zzn00005029

Structure

Battery	(See BATTERY [SKYACTIV-D 1.5].)
Generator	(See GENERATOR [SKYACTIV-D 1.5].)
DC-DC converter	(See DC-DC CONVERTER [SKYACTIV-D 1.5].)
Charging system warning light	(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].)
