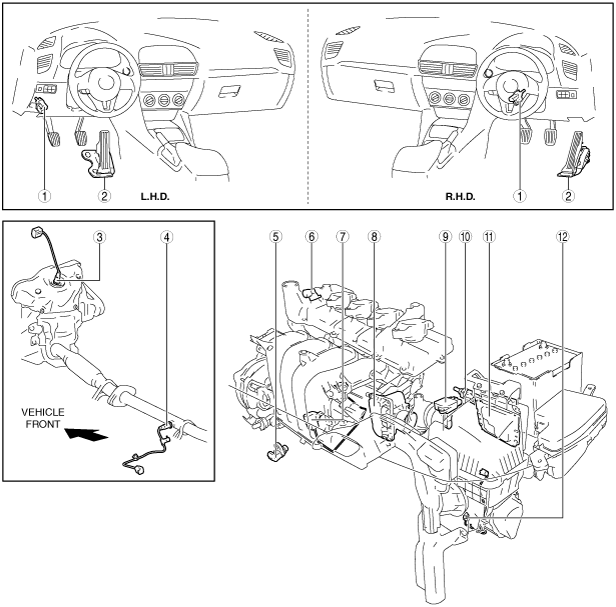

CONTROL SYSTEM LOCATION INDEX [MZR 1.6]

id0140j7804100

am3zzw00015909

1	CPP switch (MTX) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZR 1.6].)
2	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [MZR 1.6].)
3	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [MZR 1.6].)
4	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZR 1.6].) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION [MZR 1.6].)
5	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [MZR 1.6].)
6	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [MZR 1.6].)
7	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [MZR 1.6].) (See KNOCK SENSOR (KS) INSPECTION [MZR 1.6].)
8	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [MZR 1.6].)
9	MAF/IAT sensor (See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [MZR 1.6].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [MZR 1.6].)
10	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [MZR 1.6].)
11	PCM (BARO sensor, PCM temperature sensor) (See PCM REMOVAL/INSTALLATION [MZR 1.6].) (See PCM INSPECTION [MZR 1.6].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [MZR 1.6].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [MZR 1.6].) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [MZR 1.6].) (See PCM TEMPERATURE SENSOR REMOVAL/INSTALLATION [MZR 1.6].) (See PCM TEMPERATURE SENSOR INSPECTION [MZR 1.6].)
12	Neutral switch (MTX) (See NEUTRAL SWITCH INSPECTION [MZR 1.6].)
