REAR SHOCK ABSORBER DISASSEMBLY/ASSEMBLY

id021400900000

Vehicle Identification Number (VIN): Except 3MZ^**

Note

• The rear shock absorber cannot be disassembled.

Vehicle Identification Number (VIN): 3MZ^**

1. Remove the rear shock absorber. (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION.)

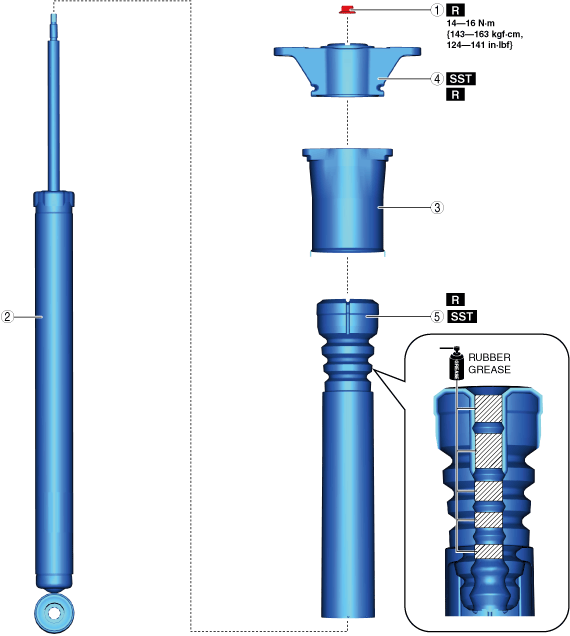

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

am3zzw00018009

Bound stopper component and mounting rubber assembly note

1. Apply rubber grease to the inside of the bound stopper component.

am2zzw00013040

Grease application amount

0.2—0.5 g {0.008—0.017 oz}

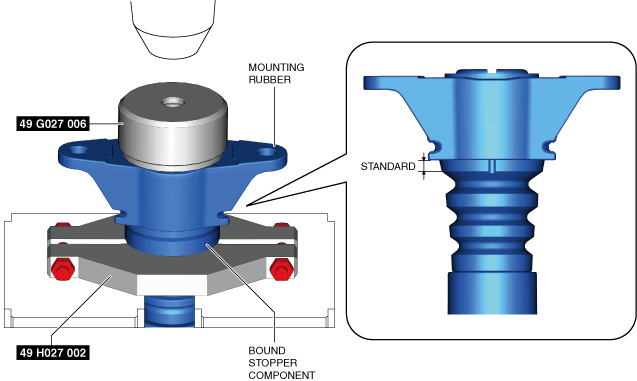

2. Assemble the bound stopper component and the mounting rubber using the SSTs and a press.

am2zzw00013041

3. Verify that the assembly position of the bound stopper component and the mounting rubber is within the standard.

Standard

8.0 mm {0.31 in} or less

Dust boot assembly note

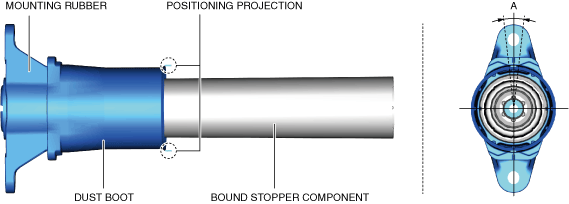

1. Assemble the dust boot to position A shown in the figure.

am2zzw00013042

A:0°±6.5°

1	Piston rod nut
2	Rear shock absorber
3	Dust boot (See Dust boot assembly note.)
4	Mounting rubber (See Bound stopper component and mounting rubber assembly note.)
5	Bound stopper component (See Bound stopper component and mounting rubber assembly note.)
