MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.]

id041100801352

Caution

• When removing/installing the master cylinder, be careful not to spill brake fluid on the power brake unit vacuum sensor. Otherwise, brake fluid may get on the power brake unit vacuum sensor and damage it.

• Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Note

• Tighten the brake pipe flare nut using any commercially available flare nut wrench.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2. For MZR 1.6, SKYACTIV-G 1.5, SKYACTIV-G 2.0, or SKYACTIV-G 2.5, perform the following procedure:

(1) Remove the plug hole plate. (Except MZR 1.6) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

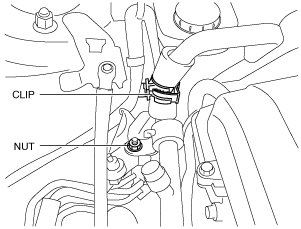

(2) Remove the cooler hose (LO) installation nut. (See REFRIGERANT LINE REMOVAL/INSTALLATION [MZR 1.6].) (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

am6zzw00009672

(3) Detach the cooler hose (LO) from the clip. (See REFRIGERANT LINE REMOVAL/INSTALLATION [MZR 1.6].) (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

3. For SKYACTIV-D 1.5 or SKYACTIV-D 2.2, perform the following procedure:

(1) Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2) Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

(3) Remove the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(4) Remove the keyless beeper. (With advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

(5) Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

6. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING.)

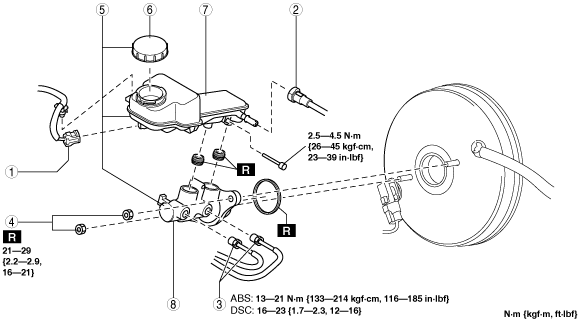

MZR 1.6, SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5

am3zzw00015876

1

Brake fluid level sensor connector

2

Clutch reserve hose (MTX)

(See Clutch Reserve Hose Removal Note (MTX).)

(See Clutch Reserve Hose Installation Note (MTX).)

3

Brake pipe

4

Nut

5

Master cylinder

6

Cap

7

Brake fluid reserve tank

8

Cylinder component

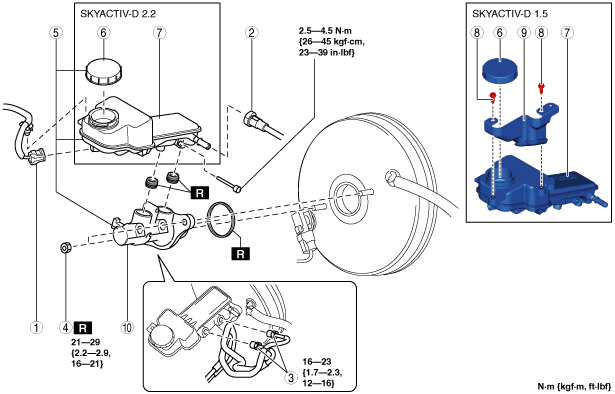

SKYACTIV-D 1.5, SKYACTIV-D 2.2

am3zzw00016013

Clutch Reserve Hose Removal Note (MTX)

1. Disconnect the clutch reserve hose in the order shown in the figure.

am3zzw00013805

Clutch Reserve Hose Installation Note (MTX)

1. Insert the clutch reserve hose to the master cylinder.

2. Pull the clutch reserve hose to verify that it does not come off, and reinsert it completely.

1	Brake fluid level sensor connector
2	Clutch reserve hose (MTX) (See Clutch Reserve Hose Removal Note (MTX).) (See Clutch Reserve Hose Installation Note (MTX).)
3	Brake pipe
4	Nut
5	Master cylinder
6	Cap
7	Brake fluid reserve tank
8	Cylinder component
