PARKING BRAKE SYSTEM LOCATION INDEX

id041200800100

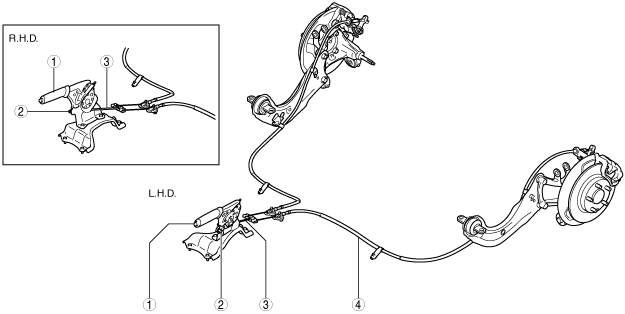

Without Electric Parking Brake

am3zzw00013537

1	Parking brake lever (See PARKING BRAKE LEVER INSPECTION.) (See PARKING BRAKE LEVER ADJUSTMENT.) (See PARKING BRAKE LEVER REMOVAL/INSTALLATION.)
2	Parking brake switch (See PARKING BRAKE SWITCH INSPECTION.)
3	Front parking brake cable (See FRONT PARKING BRAKE CABLE REMOVAL/INSTALLATION.)
4	Rear parking brake cable (See REAR PARKING BRAKE CABLE REMOVAL/INSTALLATION.)

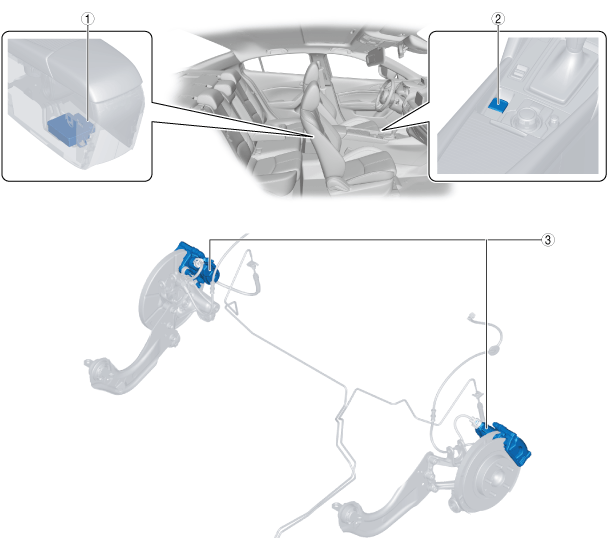

With Electric Parking Brake

am3zzw00019764

1	Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE CONTROL MODULE INSPECTION.) (See MAINTENANCE MODE.)
2	Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE SWITCH INSPECTION.)
3	Electric parking brake motor gear unit (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT INSPECTION.) (See ELECTRIC PARKING BRAKE FORCED RELEASE PROCEDURE.)
