FRONT PARKING BRAKE CABLE REMOVAL/INSTALLATION

id041200801200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

2.  Remove the upper panel. (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION.)

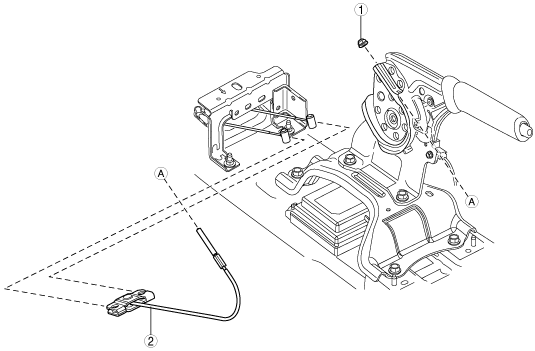

L.H.D.

am3uuw00010892

1	Adjusting nut
2	Front parking brake cable

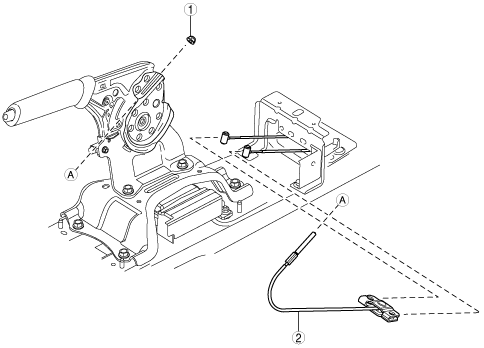

R.H.D.

am3zzw00013539

1	Adjusting nut
2	Front parking brake cable
