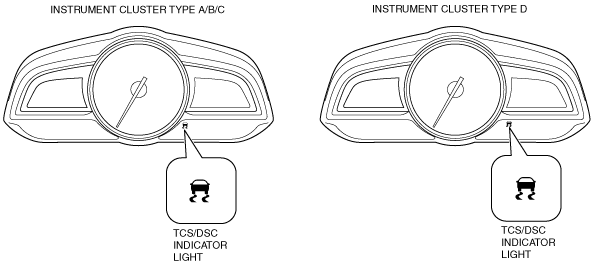

TCS/DSC INDICATOR LIGHT
id041500108900
Purpose/Function
• The TCS/DSC indicator light, built into the instrument cluster, informs the driver of the following vehicle conditions.
-
― TCS is operating. (Drive wheel is slipping.)
― DSC is operating. (Vehicle side-slip condition.)
― DSC system malfunction.
Operation
• When the DSC system and CAN lines are normal, the TCS/DSC indicator light illuminates for approx. 3.0 s when the ignition is switched ON to check the light function. When the system is malfunctioning, the TCS/DSC indicator light remains illuminated.
• When the TCS or DSC are non-operational, operational and malfunctioning, the TCS/DSC indicator light operates according to the following table.
TCS/DSC indicator light operation
|
Item
|
TCS/DSC indicator light
|
|
TCS and DSC not operating
|
Not illuminated
|
|
TCS operating
|
Flashes (0.5 s intervals)
|
|
DSC operating
|
|
DSC system malfunction
|
Illuminated
|
• For vehicles with center display, a warning message in the center display is displayed when the TCS/DSC indicator light is turned on. For the message content and verification method, refer to the CENTER DISPLAY. (See
CENTER DISPLAY [WITH CENTER DISPLAY].)
• For instrument cluster type B, a warning message in the multi-information display is displayed simultaneously when the TCS/DSC indicator light is illuminated. For the message content, refer to the MULTI-INFORMATION DISPLAY. (See
MULTI-INFORMATION DISPLAY.)
Fail-safe
• Function not equipped.
