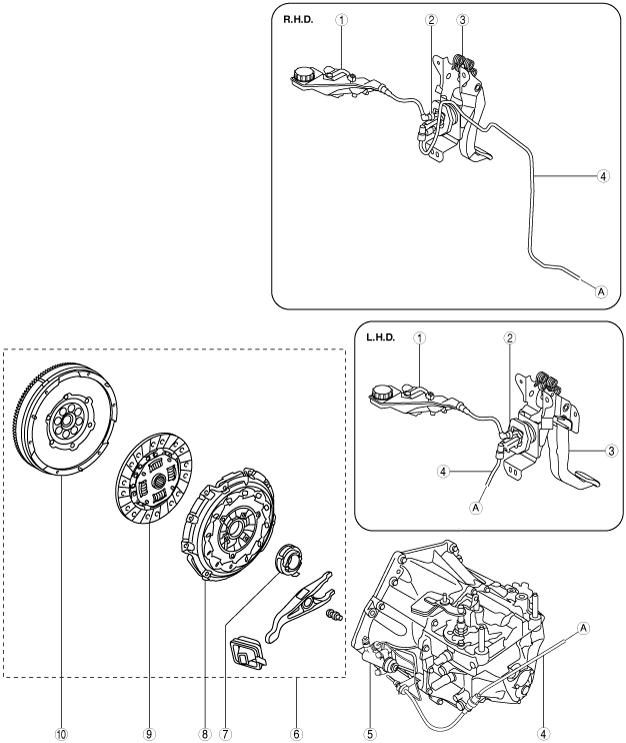

CLUTCH LOCATION INDEX [D66M-R]

id0510md156300

am6zzw00008388

1	Reserve tank (See CLUTCH FLUID INSPECTION [D66M-R].) (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING [D66M-R].)
2	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [D66M-R].)
3	Clutch pedal (See CLUTCH PEDAL INSPECTION [D66M-R].) (See CLUTCH PEDAL REMOVAL/INSTALLATION [D66M-R].) (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION [D66M-R].) (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION [D66M-R].)
4	Clutch pipe and hose (See CLUTCH FLUID LEAKAGE INSPECTION [D66M-R].) (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION [D66M-R].)
5	Clutch release cylinder (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [D66M-R].)
6	Clutch unit (See CLUTCH UNIT REMOVAL/INSTALLATION [D66M-R].)
7	Clutch release collar (See CLUTCH UNIT REMOVAL/INSTALLATION [D66M-R].) (See CLUTCH RELEASE COLLAR INSPECTION [D66M-R].)
8	Clutch cover (See CLUTCH UNIT REMOVAL/INSTALLATION [D66M-R].) (See CLUTCH COVER INSPECTION [D66M-R].)
9	Clutch disc (See CLUTCH UNIT REMOVAL/INSTALLATION [D66M-R].) (See CLUTCH DISC INSPECTION [D66M-R].)
10	Dual-mass flywheel (See CLUTCH UNIT REMOVAL/INSTALLATION [D66M-R].) (See DUAL-MASS FLYWHEEL INSPECTION [D66M-R].)
