AUTOMATIC TRANSAXLE LOCATION INDEX [FN4A-EL]

id051701290500

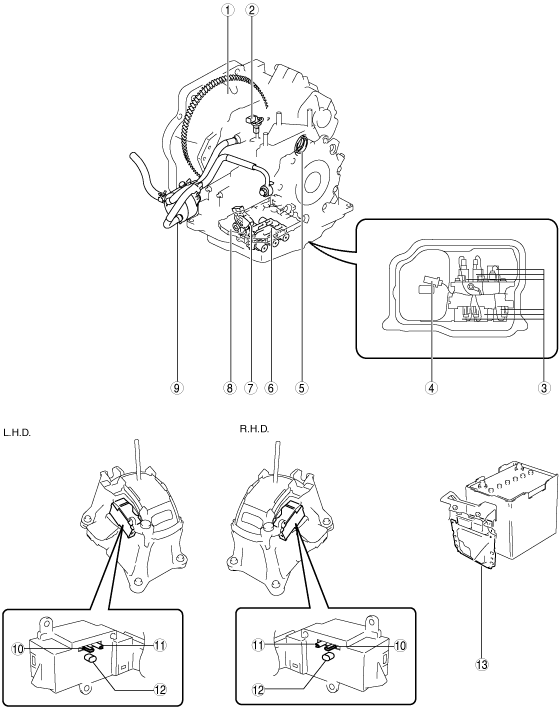

am3zzw00016312

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [FN4A-EL].)
2	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION [FN4A-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [FN4A-EL].)
3	Pressure control solenoid Shift solenoid A Shift solenoid B Shift solenoid C Shift solenoid D Shift solenoid E (See SOLENOID VALVE INSPECTION [FN4A-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION [FN4A-EL].)
4	TFT sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [FN4A-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [FN4A-EL].)
5	Oil seal (See OIL SEAL REPLACEMENT [FN4A-EL].)
6	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FN4A-EL].)
7	TR switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [FN4A-EL].) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FN4A-EL].) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION [FN4A-EL].)
8	Automatic transaxle (See MECHANICAL SYSTEM TEST [FN4A-EL].) (See ROAD TEST [FN4A-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [FN4A-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FN4A-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FN4A-EL].)
9	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [FN4A-EL].) (See OIL COOLER FLUSHING [FN4A-EL].)
10	M position switch (See M POSITION SWITCH INSPECTION [FN4A-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [FN4A-EL].)
11	Up switch (See UP SWITCH INSPECTION [FN4A-EL].) (See UP SWITCH REMOVAL/INSTALLATION [FN4A-EL].)
12	Down switch (See DOWN SWITCH INSPECTION [FN4A-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [FN4A-EL].)
13	PCM (See PCM INSPECTION [FN4A-EL].) (See PCM REMOVAL/INSTALLATION [FN4A-EL].)
