BLOWER UNIT
id071100001300
Purpose, Function
• The blower unit switches between fresh air and recirculated air (FRESH/REC) and sends airflow into the cabin.
Construction

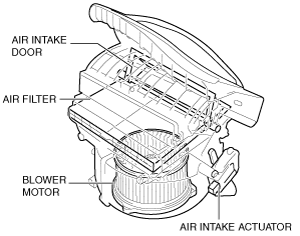

• The blower motor consists of the following parts:
-
― Blower motor
― Air intake door
― Air intake actuator
― Air filter
L.H.D.
R.H.D.
Operation
• For the operation, refer to the [BLOWER SYSTEM]. (See
BLOWER SYSTEM.)
Fail-safe
• Not applicable
