•  The resistor controls the blower motor rotation speed.

•  The resistor controls the supply voltage to the blower motor according to the fan switch conditions, and adjusts the blower motor rotation speed (airflow volume).

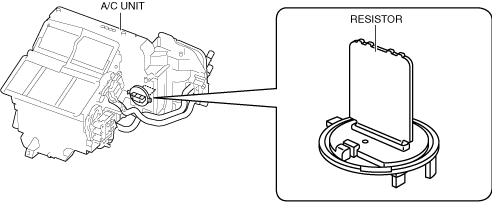

•  The resistor is installed to the A/C unit.

•  A thin, card type resistor has been adopted.

am3zzn00006533

•  For the resistor operation, refer to the [BLOWER SYSTEM]. (See BLOWER SYSTEM.)

•  Not applicable
