RESISTOR REMOVAL/INSTALLATION

id071100016300

Note

•  When removing the resistor, perform the procedure in the posture shown in the figure.

am6xuw00006182

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

2.  Remove the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)  Side wall (passenger-side) (See SIDE WALL REMOVAL/INSTALLATION.)

(3)  Front heat duct (passenger-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am3zzw00019901

4.  Rotate the resistor (2) while pressing the tab (1).

am3zzw00019902

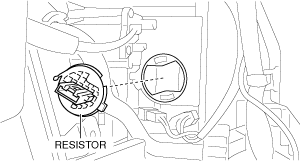

5.  Remove the resistor.

am3zzw00019903

6.  Install in the reverse order of removal.
