FUEL-FILLER LID REMOVAL/INSTALLATION

id091000800100

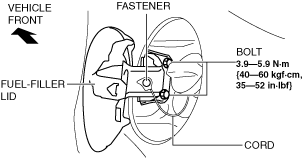

1.  Remove the bolts shown in the figure.

am3zzw00020535

2.  Remove the fastener.

3.  Remove the fuel-filler lid.

4.  Install in the reverse order of removal.

5.  Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT.)
