FUEL-FILLER LID ADJUSTMENT
id091000800200

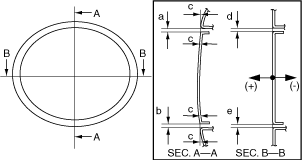

1. Verify that the gap and height difference between the fuel-filler lid and body.
-
Standard clearance (4SD)
-
a: 1.73—3.73 mm {0.069—0.146 in}
b: 0.8—2.8 mm {0.04—0.11 in}
c: –0.5—1.5 mm {–0.01—0.05 in}
d: 1.72—3.72 mm {0.068—0.146 in}
e: 1.55—3.55 mm {0.062—0.139 in}
-
Standard clearance (5HB)
-
a: 1.76—3.76 mm {0.070—0.148 in}
b: 0.78—2.78 mm {0.031—0.109 in}
c: –0.5—1.5 mm {–0.01—0.05 in}
d: 1.74-3.74 mm {0.069—0.147 in}
e: 1.56-3.56 mm {0.062—0.140 in}
-
• If the measured value exceeds the standard clearance, adjust the fuel-filler lid using the following procedure:
2. Loosen the bolts and adjust the fuel-filler lid.
3. Tighten the bolts. (See FUEL-FILLER LID REMOVAL/INSTALLATION.)
