FRONT BUMPER REMOVAL

id091000804800

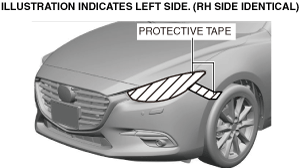

1.  Affix the protective tape to the position (vehicle body side) shown in the figure to prevent scratches and damage.

am3zzw00020557

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

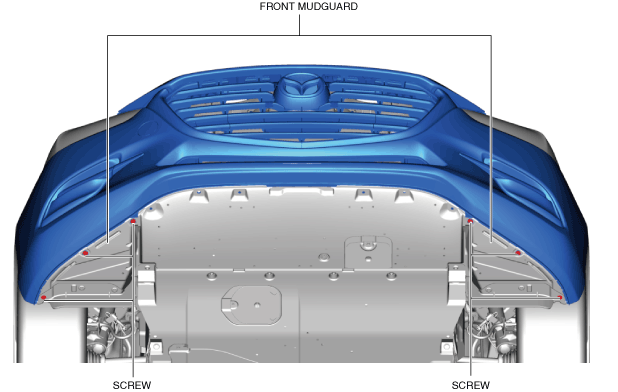

3.  Remove the screws.

am3zzw00018779

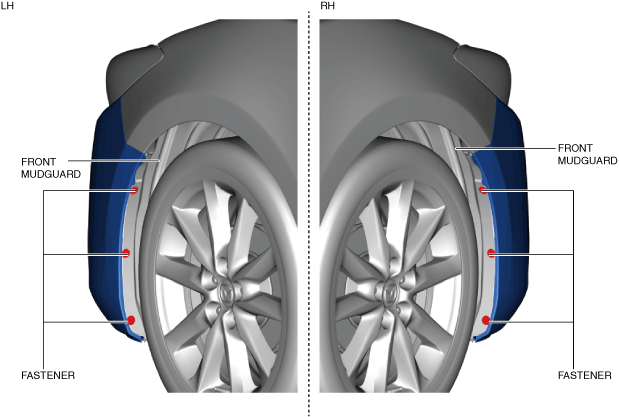

4.  Remove the fasteners.

am3zzw00018780

5.  Remove the screw which can be verified at the position where the front mudguard was bent back.

am3zzw00019874

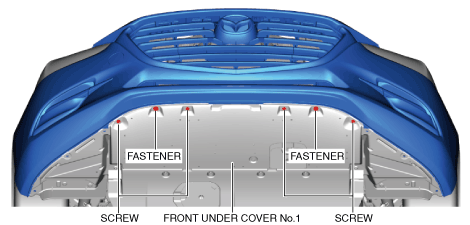

6.  Remove the screws and fasteners.

am3zzw00019875

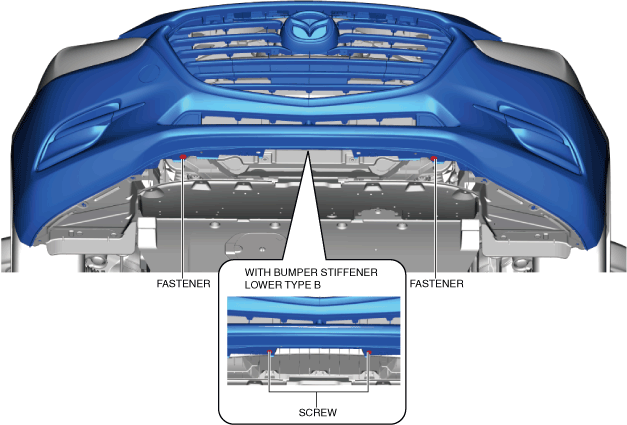

7.  Remove the screws and fasteners which can be verified at the position where front under cover No.1 was pulled back.

am3zzw00018783

8.  Remove the bolts.

am3zzw00019876

9.  Remove the fastener which can be verified at the position where the fresh-air-duct was pulled back.

am3zzw00018785

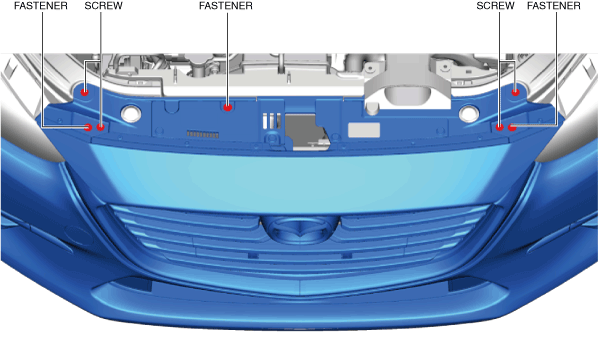

10.  Remove the screws.

am3zzw00018786

11.  Remove the fasteners.

12.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

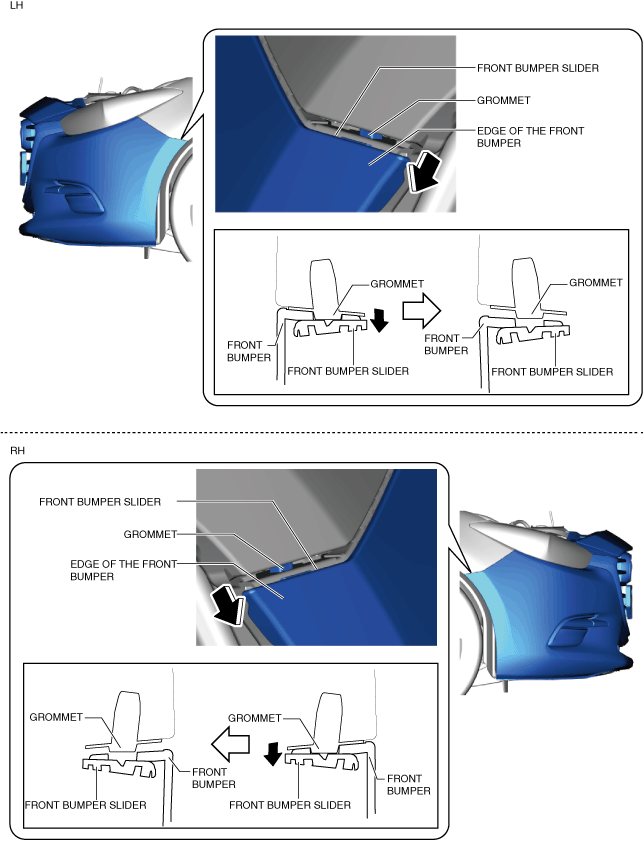

13.  Grasp the front bumper end, move it in the direction of the arrow shown in the figure, and remove the front bumper from the grommet.

am3zzw00020558

Caution

•  Carefully remove the front bumper from the front bumper slider. If the front bumper is removed from the front bumper slider with excessive force, the front bumper hooks may be damaged because the front bumper and the front bumper slider are engaged firmly.

•  Detach the front bumper hooks from the front bumper slider using two people, one person supports the front bumper. If the front bumper hooks are detached from the front bumper without supporting the front bumper, it may fall off and be damaged.

14.  Pull the rear end of the front bumper in the order of the arrows shown in the figure, and detach the front bumper hooks from the front bumper slider.

am3zzw00019877

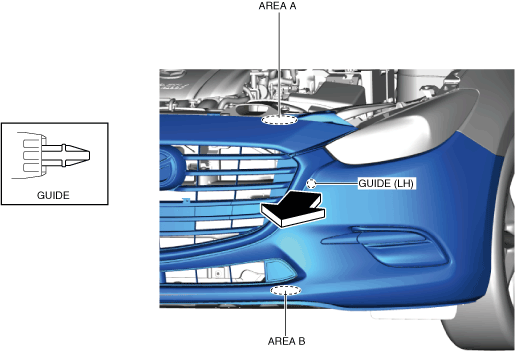

15.  Hold areas A and B shown in the figure, pull the front bumper in the direction of the arrow, and remove the guide (LH).

am3zzw00018789

16.  Hold areas A and B shown in the figure, pull the front bumper in the direction of the arrow, and remove the guide (RH).

am3zzw00019878

17.  Disconnect the connectors and wiring harness clips shown in the figure.

am3zzw00018791

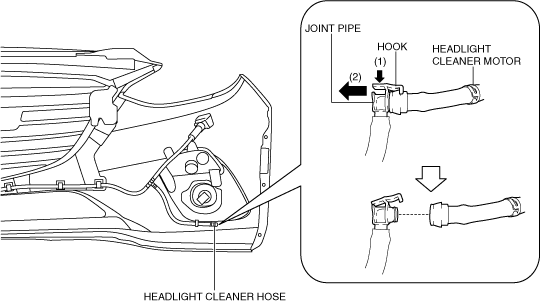

18.  While pressing the hook of the joint pipe in the direction of arrow (1) shown in the figure, pull the joint pipe in the direction of arrow (2) to disconnect the joint pipe from headlight cleaner motor. (With headlight cleaner system)

am3zzw00020559

19.  Remove the front bumper.
