AUTO-DIMMING MIRROR REMOVAL/INSTALLATION

id091200099900

With Forward Sensing Camera (FSC)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

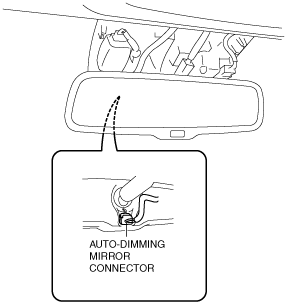

3.  Disconnect the auto-dimming mirror connector.

ac5wzw00001355

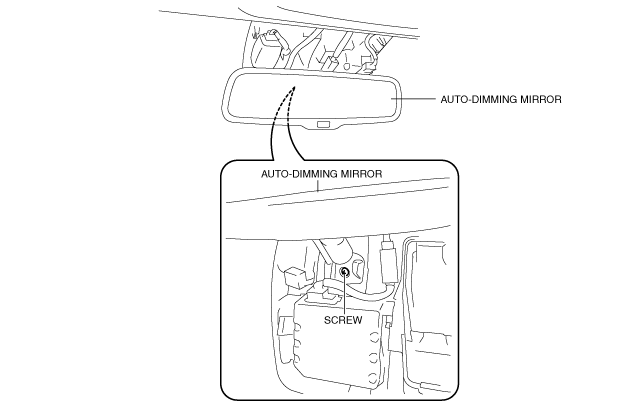

4.  Loosen the screw.

am3zzw00020628

5.  Remove the auto-dimming mirror in the direction of the arrow shown in the figure.

am3zzw00017321

6.  Install in the reverse order of removal.

Without Forward Sensing Camera (FSC)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Loosen the screw.

am3zzw00020629

3.  Remove the auto-dimming mirror in the direction of the arrow shown in the figure.

am3zzw00019983

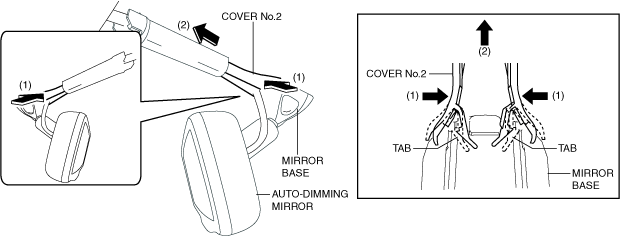

4.  Detach tabs while pressing cover No.2 in the direction of the arrows (1) shown in the figure, then remove cover No.2 in the direction of the arrow (2).

am3zzw00020630

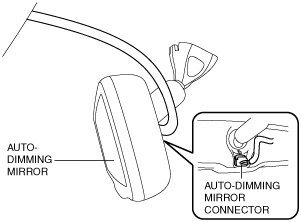

5.  Disconnect the auto-dimming mirror connector.

ac5wzw00002994

6.  Remove the auto-dimming mirror in the direction of arrow from the mirror base.

am3zzw00019985

7.  Install in the reverse order of removal.
