THEFT-DETERRENT HORN REMOVAL/INSTALLATION

id091400517500

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Pull back the trunk side trim (RH) to a position which allows for the removal of the theft-deterrent horn. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

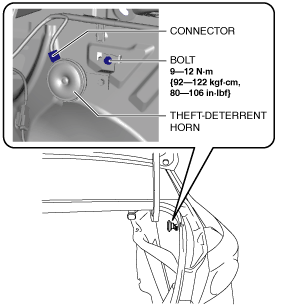

3.  Disconnect the connector.

am3uuw00009959

4.  Remove the bolt.

5.  Remove the theft-deterrent horn.

6.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the service hole cover.

am3uuw00009960

3.  Remove the jack.

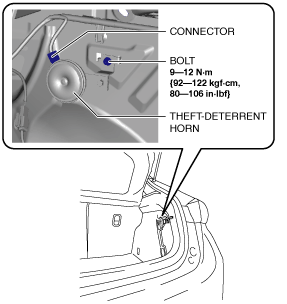

4.  Disconnect the connector.

am3uuw00009961

5.  Remove the bolt.

6.  Remove the theft-deterrent horn.

7.  Install in the reverse order of removal.
