TRUNK SIDE TRIM REMOVAL/INSTALLATION

id091700803100

4SD

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

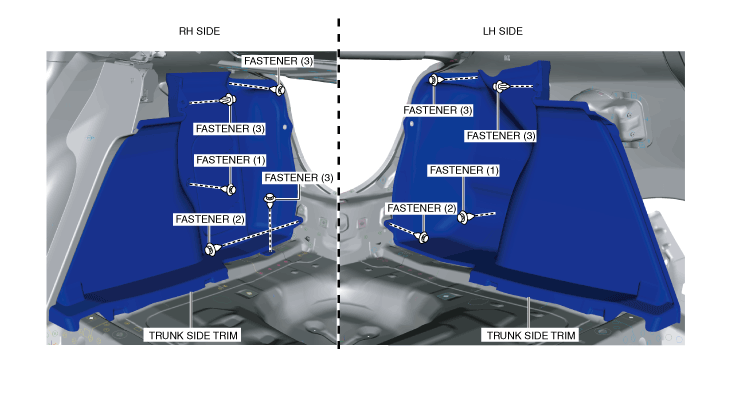

2.  Remove the fasteners in the order of (1), (2) and (3) shown in the figure.

am3zzw00020125

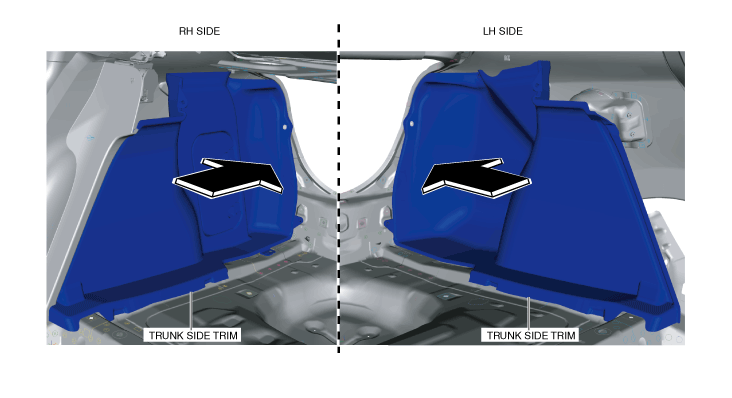

3.  Move the trunk side trim in the direction of the arrows shown in the figure, and remove the trunk side trim while setting the tire house trim aside.

am3zzw00018450

4.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(6)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(7)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

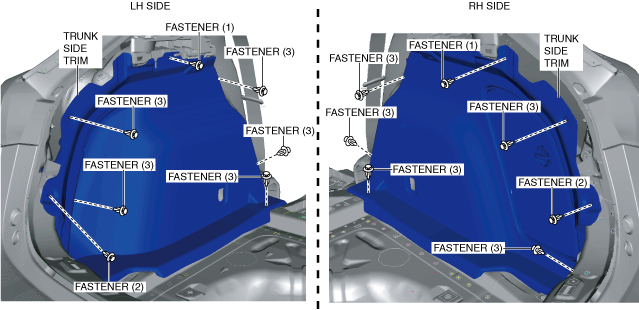

3.  Remove the fasteners in the order of (1), (2) and (3) shown in the figure.

am3zzw00018451

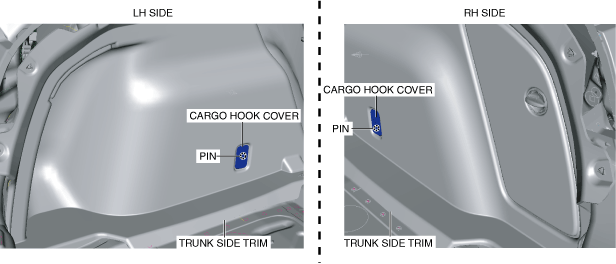

4.  Remove the pin, then remove the cargo hook cover.

am3zzw00018452

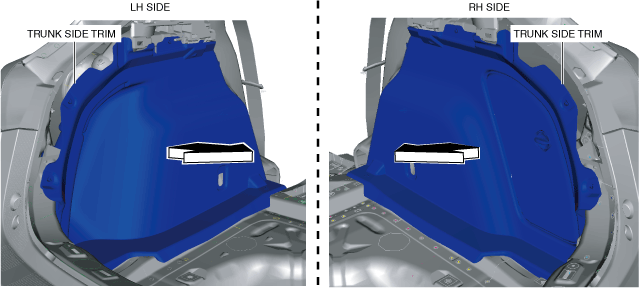

5.  Remove the trunk side trim in the direction of the arrow shown in the figure. (See Trunk Side Trim Installation Note.)

am3zzw00018453

6.  Install in the reverse order of removal.

Trunk Side Trim Installation Note

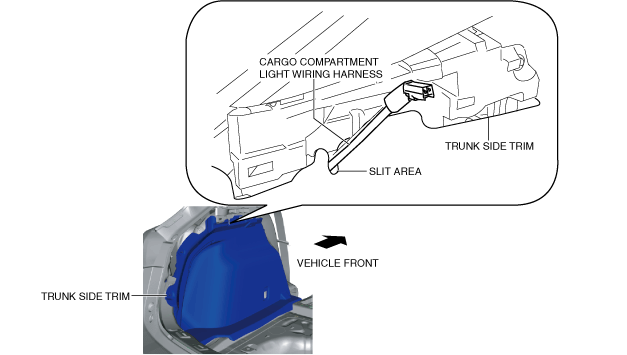

1.  If the cargo compartment light wiring harness is routed incorrectly, the trunk side upper trim will interfere with the cargo compartment light wiring harness when installing the trunk side upper trim which could damage the cargo compartment light wiring harness. When routing the cargo compartment light wiring harness, route it through the slit area shown in the figure. (LH only)

am3zzw00018454
