SIDE STEP MOLDING INSTALLATION

id091600804300

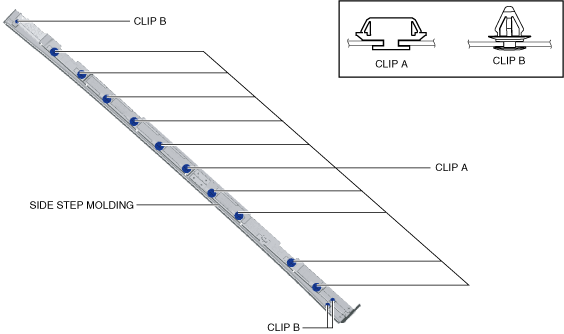

1.  Install clips A and clip B to the side step molding.

am3zzw00020681

2.  Press the side step molding in the direction of the arrow shown in the figure and install the clip to the body.

am3zzw00014304

3.  Press the side step molding starting from the front of the vehicle and install the clips.

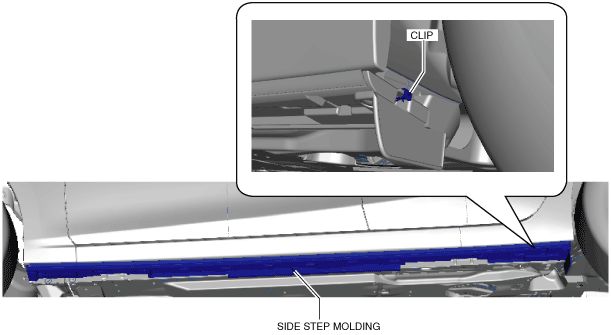

4.  Install the clip shown in the figure.

am3zzw00014301

5.  Install the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)
